| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

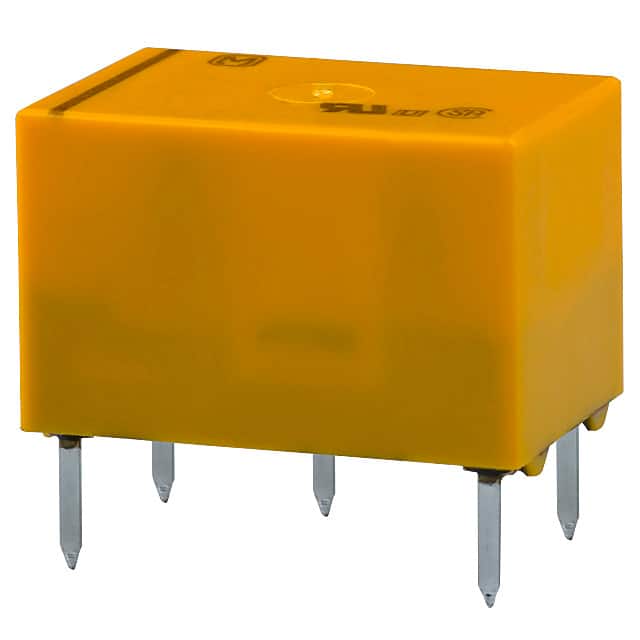

This Panasonic DS1E-ML2-DC3V is a general purpose relay with a SPDT (1 Form C) contact configuration. It operates with a 3VDC coil voltage and has a contact rating of 2A.
The relay is suitable for through-hole mounting and features PC pin termination. Its operating temperature range is -40°C to 70°C. The contact material is a combination of Silver (Ag) and Gold (Au), and it has a sealed rating.
Key electrical specifications include a coil current of 120 mA, a must-operate voltage of 2.1 VDC, an operate time of 10 ms, and a release time of 5 ms. The maximum switching voltage is 250VAC and 220VDC.
This relay is part of the DS series and is designed for applications requiring reliable signal switching within its specified parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 3 VDC.
The contact rating is 2 A.
The operating temperature range is -40°C to 70°C.
It uses through-hole mounting.
The contact form is SPDT (1 Form C).
