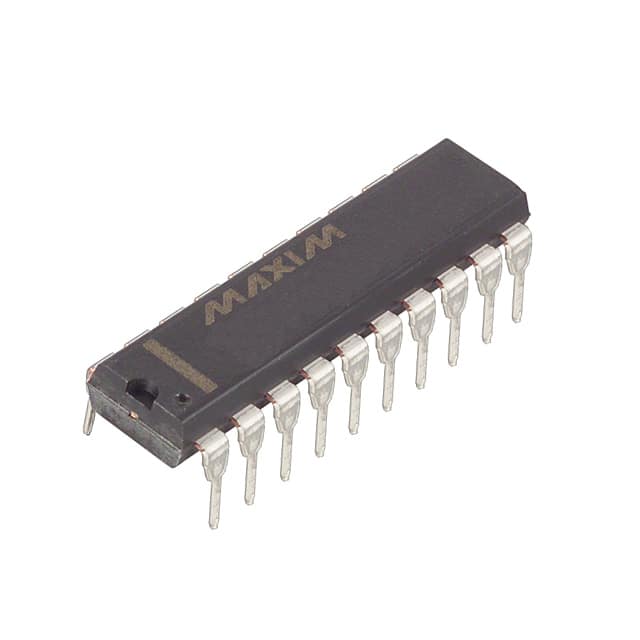

The Analog Devices DS1844-050 is a versatile quad digital potentiometer designed for precise control in electronic circuits. Each of its four independent channels features a 64-position linear taper resistor ladder, offering a nominal resistance of 50k Ohms with a ±20% tolerance.
This device supports a wide operating voltage range from 2.7V to 5.5V and operates reliably within an industrial temperature range of -40°C to +85°C. It provides two interface options for control: a 5-wire serial interface and a 2-wire addressable interface, compatible with I²C communication protocols. The DS1844-050 is a volatile device, powering up with wiper positions set to the mid-tap.
Packaged in a 20-pin DIP through-hole configuration, the DS1844-050 is suitable for applications requiring digital control over resistance values. Its design includes accessible high-end, low-end, and wiper terminals for each potentiometer, allowing flexible integration into various circuit designs.
The DS1844-050 has a nominal resistance of 50k Ohms.
The operating voltage range is 2.7V to 5.5V.
The operating temperature range is -40°C to 85°C.
It supports both a 5-wire serial interface and a 2-wire addressable interface.
Each potentiometer has 64 taps.
The DS1844-050 features a linear taper.
