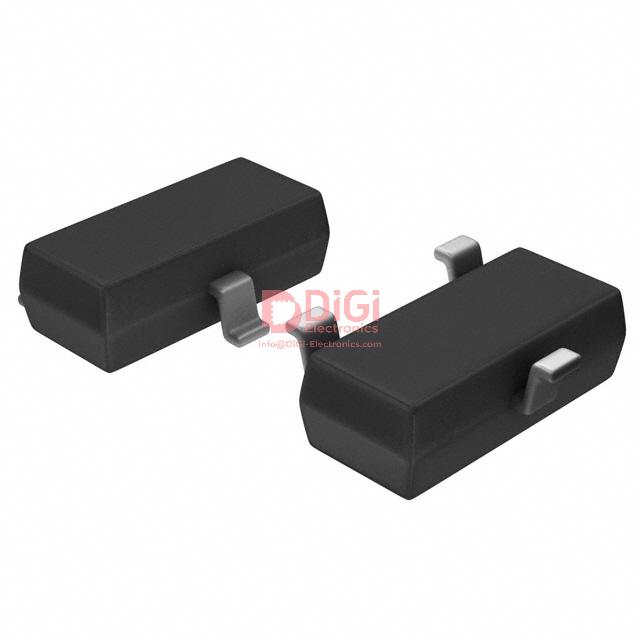

DS1816R-10-U+ The DS1816R-10-U+ is a 3.3V supervisor IC from Analog Devices that automatically restarts a microprocessor after a power failure. It features an open-drain output and is available in a SOT-23-3 package.
Mfr Part #:

DS1816R-10-U+

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The DS1816R-10-U+ is a 3.3V supervisor IC from Analog Devices that automatically restarts a microprocessor after a power failure. It features an open-drain output and is available in a SOT-23-3 package.
✓ Total Stock: 27 pcs
$ Price Range: $0.75

DS1816R-10-U+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1816R-10-U+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Output Current
Reset
Reset Timeout
SVHC Present
Supplier Device Package
Type
Voltage
View Similar Products (0)

DS1816R-10-U+ Description

Short technical summary and product information.

The DS1816R-10-U+ from Analog Devices is an EconoReset supervisor designed to monitor power supply status and automatically restart a microprocessor following a power failure. It maintains a reset signal for approximately 150ms after VCC returns to an in-tolerance condition, allowing the power supply and processor to stabilize.



This supervisor features a precision temperature-compensated voltage reference and comparator circuit. It offers accurate power monitoring with a 3.3V threshold and an open-drain output with an internal 5k pull-up resistor. The operating temperature range is -40°C to +85°C.



Available in a space-saving SOT-23-3 package, the DS1816R-10-U+ reduces the need for discrete components in system designs. Its surface mount capability makes it suitable for various electronic applications requiring reliable power monitoring and reset functions.



Key electrical characteristics include a supply voltage range of 0V to 5.5V and a typical operating current of 35µA. The reset timeout is a minimum of 100ms, ensuring proper system stabilization.

DS1816R-10-U+ Quick Information

Product Type: Supervisor
Series: DS1816
Canonical Name: DS1816R-10-U+ 3.3V EconoReset Supervisor with Open Drain Output
Subcategory: Power Management (PMIC)

DS1816R-10-U+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1816R-10-U+ Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1816R-10-U+ Features

  • Automatically restarts microprocessor after power failure.
  • Maintains reset for 150ms after VCC returns.
  • Precision voltage reference and comparator.
  • Open-drain output with internal pull-up.
  • Operates from -40°C to +85°C.

DS1816R-10-U+ Applications

  • Monitors power supply status.
  • Provides microprocessor reset.
  • Suitable for 3.3V systems.
  • Reduces discrete component count.

DS1816R-10-U+ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DS1816R-10-U+?

The operating voltage range is from 0V to 5.5V.

What is the voltage threshold for the DS1816R-10-U+?

The VCC trip point is typically 3.06V, with a minimum of 2.98V and a maximum of 3.15V.

What is the operating temperature range of the DS1816R-10-U+?

The operating temperature range is -40°C to +85°C.

What is the reset timeout for the DS1816R-10-U+?

The reset timeout is a minimum of 100ms, with a typical duration of 150ms.

What type of output does the DS1816R-10-U+ have?

It features an open-drain or open-collector output.

What package is the DS1816R-10-U+ available in?

The DS1816R-10-U+ is available in a SOT-23-3 package.
