| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
992 pcs
|
992 pcs | On Request | 1 | On Request | On Request | 02+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Type | |
| Voltage |
The DS1815R-20 is an EconoReset supervisor IC manufactured by Analog Devices Inc. This component is designed to automatically restart a microprocessor after a power failure, maintaining the reset signal for approximately 150ms after VCC returns to an in-tolerance condition. It features a precision temperature-compensated voltage reference and comparator circuit to monitor power supply status.
Key electrical specifications include a typical voltage threshold of 2.55V and a supply voltage range of 0V to 5.5V. The output type is push-pull with an active low reset function. The device operates reliably within a temperature range of -40°C to +85°C.

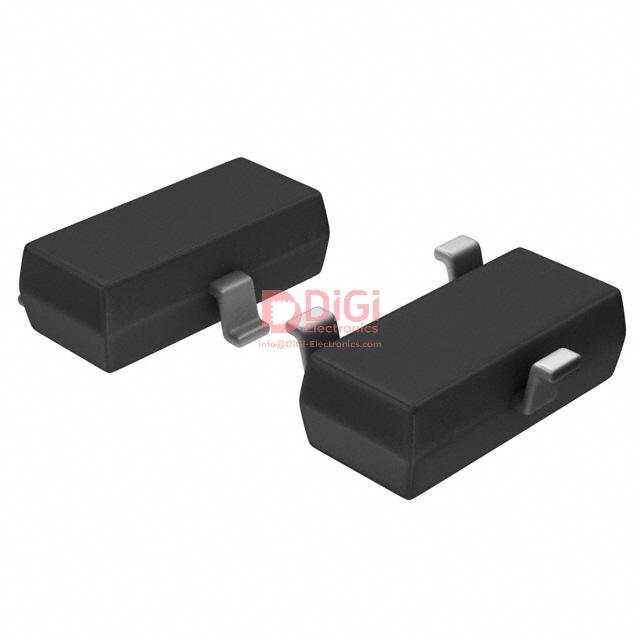

This supervisor is available in a space-saving SOT-23-3 surface-mount package, making it suitable for designs where board space is a concern. Its functionality reduces the need for discrete components in power monitoring and reset circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the DS1815R-20 is -40°C to +85°C.
The supply voltage range for the DS1815R-20 is 0V to 5.5V.
The DS1815R-20 maintains the reset signal for approximately 150ms after VCC returns to an in-tolerance condition.
The typical voltage threshold for the DS1815R-20 is 2.55V.
The DS1815R-20 has a Push-Pull, Totem Pole output.
The reset function of the DS1815R-20 is Active Low.
The DS1815R-20 monitors 1 voltage.
