| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,089 pcs
|
20089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Output | |
| Reset Timeout | |
| Supplier Device Package | |
| Type |
The DS1810R-10 is a supervisor integrated circuit manufactured by Analog Devices / Maxim Integrated. This component is designed for power management applications, specifically functioning as a simple reset or power-on reset.
Key electrical specifications include a voltage threshold of 4.37V and a reset timeout of 100ms. It monitors a single voltage and provides a push-pull, totem pole output. The device operates within a temperature range of -40°C to 85°C.

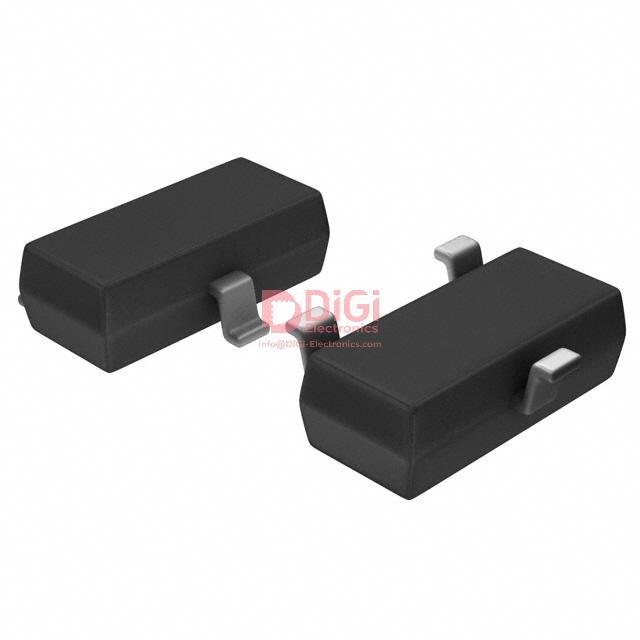

This supervisor is available in a surface mount package, specifically the SOT-23-3 (TO-236-3, SC-59) case. Its compact size and surface mount capability make it suitable for various electronic designs where space is a consideration.
The DS1810R-10 is part of the EconoReset series, offering reliable power-on reset functionality. It is designed for applications requiring stable voltage monitoring and system reset.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.37V.
100ms.
Push-pull, totem pole.
-40°C to 85°C.
SOT-23-3 (also TO-236-3, SC-59).
1.
Low.
