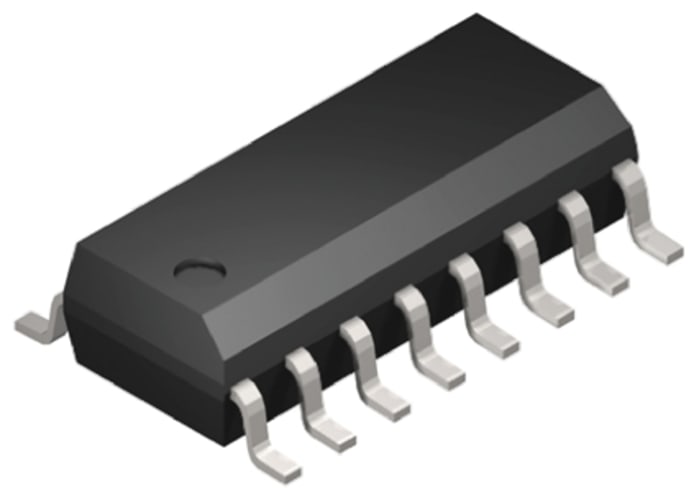

DS1803Z-100 The DS1803Z-100 is a dual-channel, 256-position digital potentiometer from Analog Devices / Maxim Integrated. It features a 100kΩ resistance and a 2-wire serial interface.
Mfr Part #:

DS1803Z-100

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The DS1803Z-100 is a dual-channel, 256-position digital potentiometer from Analog Devices / Maxim Integrated. It features a 100kΩ resistance and a 2-wire serial interface.
✓ Total Stock: 96 pcs

DS1803Z-100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
96 pcs
On Request
96 pcs On Request 1 On Request On Request 527 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1803Z-100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Features
Interface
Lead Spacing
Memory Type
Mounting Type
Number of Circuits
Number of Taps
Operating Temperature
Resistance
Resistance (Ohms)
Supplier Device Package
Supplier Package
Tape & Reel
Taper
Temperature Coefficient
Temperature Coefficient (Typ)
Tolerance
Voltage
View Similar Products (0)

DS1803Z-100 Description

Short technical summary and product information.

The DS1803Z-100 is an addressable dual digital potentiometer from Analog Devices / Maxim Integrated, offering two independently controlled 256-position potentiometers. It operates with a supply voltage range of 2.7V to 5.5V and features a standard resistance value of 100kΩ with linear taper.



Device control is achieved through a 2-wire serial interface, allowing up to 8 DS1803 devices to share the same interface using three address pins. The exact wiper position of each potentiometer can be written or read. The device is specified for an industrial operating temperature range of -40°C to +85°C.



This component is available in a 16-pin SOIC surface-mount package. It is a volatile device, meaning wiper positions are reset to the low-end terminals upon power loss. The DS1803Z-100 is suitable for applications requiring digitally controlled resistance or voltage division.

DS1803Z-100 Quick Information

Product Type: Digital Potentiometer
Canonical Name: DS1803Z-100 Addressable Dual Digital Potentiometer
Subcategory: Data Converters

DS1803Z-100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1803Z-100 Features

  • Dual-channel 256-position digital potentiometer.
  • 100kΩ resistance with linear taper.
  • 2-wire serial interface with selectable address.
  • Operates from 2.7V to 5.5V supply.
  • Industrial temperature range: -40°C to +85°C.

DS1803Z-100 Applications

  • Digitally controlled resistance adjustment.
  • Voltage divider applications.
  • Audio volume control circuits.
  • Programmable gain amplifiers.
  • System calibration and trimming.

DS1803Z-100 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the DS1803Z-100 digital potentiometer?

The DS1803Z-100 has a nominal resistance of 100kΩ.

How many channels does the DS1803Z-100 have?

The DS1803Z-100 features two independent digital potentiometer channels.

What is the operating voltage range for the DS1803Z-100?

The DS1803Z-100 operates within a voltage range of 2.7V to 5.5V.

What is the operating temperature range of the DS1803Z-100?

The DS1803Z-100 is rated for an operating temperature range of -40°C to +85°C.

What type of interface does the DS1803Z-100 use?

The DS1803Z-100 utilizes a 2-wire serial interface.

What package type is the DS1803Z-100 supplied in?

The DS1803Z-100 is supplied in a 16-pin SOIC package.
