DS1747P-70+ The DS1747P-70+ is a Y2K-compliant, nonvolatile timekeeping RAM from Dallas Semiconductor. It integrates NV SRAM, an RTC, and a power-fail control circuit.
Mfr Part #:

DS1747P-70+

Available from 1 distributors
Mfr Name: Dallas Semiconductor
Dallas Semiconductor
The DS1747P-70+ is a Y2K-compliant, nonvolatile timekeeping RAM from Dallas Semiconductor. It integrates NV SRAM, an RTC, and a power-fail control circuit.
✓ Total Stock: 2,012 pcs
$ Price Range: $1.28

DS1747P-70+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,012 pcs
On Request
2012 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1747P-70+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Memory Size
Mounting Type
Operating Temperature
SVHC Present
Voltage
View Similar Products (0)

DS1747P-70+ Description

Short technical summary and product information.

The DS1747P-70+ by Dallas Semiconductor is a Y2K-compliant, nonvolatile timekeeping RAM. This integrated circuit combines NV SRAM, a Real-Time Clock (RTC), a crystal, a power-fail control circuit, and a lithium energy source.



The device features 512KB of memory and a parallel interface. It operates within a voltage supply range of 4.5V to 5.5V and has a battery voltage of 3V. The operating temperature range is 0°C to 70°C. The timekeeping current consumption is a maximum of 4mA at 5V.



Key features include automatic leap year compensation valid up to the year 2100, a battery voltage-level indicator flag, and power-fail write protection with ±10% VCC power-supply tolerance. The clock registers are accessed identically to the static RAM, residing in the eight top RAM locations.

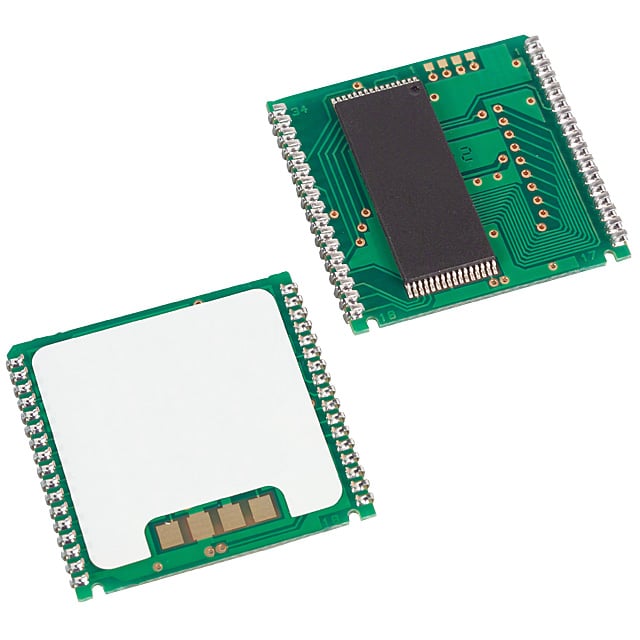

This component is available in a 34-PowerCap™ Module package and is designed for surface mounting. It offers over 10 years of operation in the absence of power, ensuring data integrity and reliable timekeeping.

DS1747P-70+ Quick Information

Product Type: Real-Time Clock
Canonical Name: DS1747P-70+ Y2K-Compliant Nonvolatile Timekeeping RAM
Subcategory: Timekeeping RAM

DS1747P-70+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1747P-70+ Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1747P-70+ Features

  • Integrated NV SRAM and Real-Time Clock.
  • Y2K compliant with leap year compensation.
  • Nonvolatile operation over 10 years.
  • Power-fail write protection included.
  • Surface mountable 34-PowerCap™ Module.

DS1747P-70+ Applications

  • Ideal for data logging systems.
  • Suitable for embedded systems.
  • Used in time-sensitive applications.
  • Provides reliable timekeeping.
  • Ensures data integrity without power.

DS1747P-70+ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the DS1747P-70+?

4.5V to 5.5V.

What is the operating temperature range?

0°C to 70°C.

What package does the DS1747P-70+ come in?

34-PowerCap Module, surface mount.

How much nonvolatile SRAM is integrated?

512KB.

What interface does it use?

Parallel.

What is the battery voltage?

3V.

Does it have automatic leap year compensation?

Yes, valid up to the year 2100.
