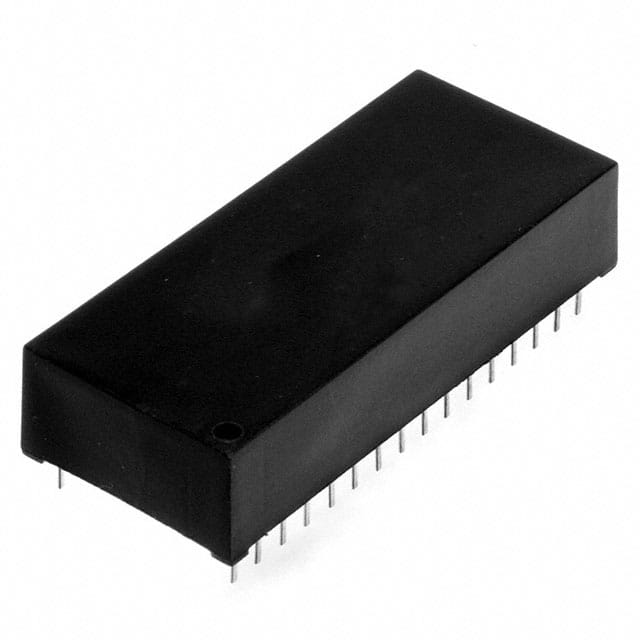

DS1746W-120 The Analog Devices / Maxim Integrated DS1746W-120 is a Clock/Calendar Real Time Clock with 128KB memory. It operates from 2.97V to 3.63V and has a temperature range of 0°C to 70°C.
Mfr Part #:

DS1746W-120

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices / Maxim Integrated DS1746W-120 is a Clock/Calendar Real Time Clock with 128KB memory. It operates from 2.97V to 3.63V and has a temperature range of 0°C to 70°C.
✓ Total Stock: 4,512 pcs

DS1746W-120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1746W-120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Date Format
Features
Interface
Lead Style
Memory Size
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Time Format
Type
Voltage
View Similar Products (0)

DS1746W-120 Description

Short technical summary and product information.

The Analog Devices / Maxim Integrated DS1746W-120 is a Y2K-compliant, nonvolatile timekeeping RAM with an integrated Real-Time Clock, Crystal, and Power-Fail Control Circuit. It features 128KB of memory and operates within a voltage range of 2.97V to 3.63V.



This device offers a Parallel interface and operates at temperatures from 0°C to 70°C. Key features include leap year compensation valid up to the year 2100, a battery voltage-level indicator, and power-fail write protection. The clock registers are accessed identically to the static RAM, residing in the eight top RAM locations.



Packaged in a 32-EDIP module, the DS1746W-120 is designed for through-hole mounting. It is suitable for applications requiring reliable timekeeping and nonvolatile data storage, even in the absence of power for extended periods.

DS1746W-120 Quick Information

Product Type: Real Time Clock
Series: DS1746
Canonical Name: Analog Devices / Maxim Integrated DS1746W-120 Clock/Calendar IC
Subcategory: Clock/Calendar

DS1746W-120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1746W-120 Features

  • Integrated NV SRAM and Real-Time Clock.
  • Y2K compliant with leap year compensation.
  • Operates from 2.97V to 3.63V.
  • 128KB memory capacity.
  • 32-EDIP through-hole package.

DS1746W-120 Applications

  • Ideal for embedded systems requiring timekeeping.
  • Suitable for data logging applications.
  • Used in devices needing Y2K compliance.
  • Applications requiring nonvolatile data storage.

DS1746W-120 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DS1746W-120?

The operating voltage range is 2.97V to 3.63V.

What is the operating temperature range for the DS1746W-120?

The operating temperature range is 0°C to 70°C.

What type of interface does the DS1746W-120 use?

The DS1746W-120 uses a Parallel interface.

What is the memory size of the DS1746W-120?

The memory size is 128KB.

What package is the DS1746W-120 supplied in?

The DS1746W-120 is supplied in a 32-EDIP package.
