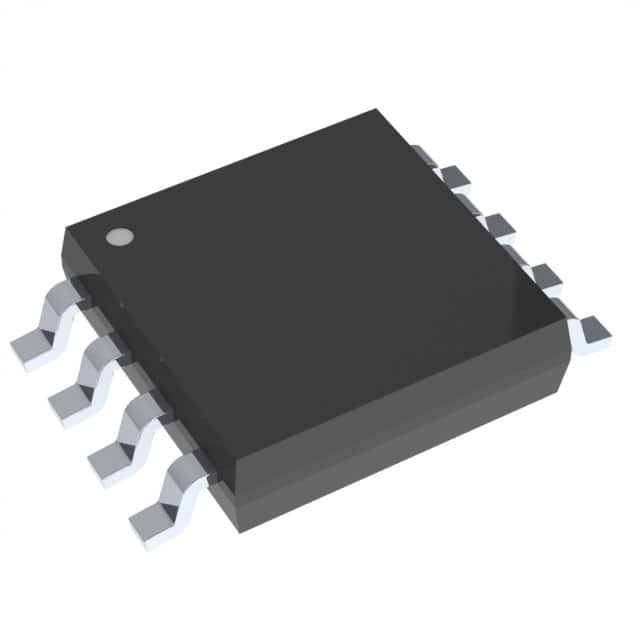

DS1669S The Analog Devices DS1669S-10 is a digital potentiometer with 10k Ohm resistance and 64 taps. It features an Up/Down interface and is supplied in an 8-SOIC package.
Mfr Part #:

DS1669S

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices DS1669S-10 is a digital potentiometer with 10k Ohm resistance and 64 taps. It features an Up/Down interface and is supplied in an 8-SOIC package.
✓ Total Stock: 2,030 pcs
$ Price Range: $1.17

DS1669S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,030 pcs
On Request
2030 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1669S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Interface
Memory Type
Mounting Type
Number of Circuits
Number of Taps
Operating Temperature
Resistance
Supplier Device Package
Taper
Temperature Coefficient
Tolerance
Voltage
View Similar Products (0)

DS1669S Description

Short technical summary and product information.

The Analog Devices DS1669S-10 is a digital potentiometer from the Dallastat™ series. It offers a resistance value of 10k Ohm with a linear taper and 64 taps, providing precise control.



The device operates with a supply voltage range of ±4.5V to 8V and features an Up/Down interface for easy adjustment. Its non-volatile memory type ensures settings are retained. The potentiometer has a tolerance of ±20% and a typical temperature coefficient of 750ppm/°C.



Packaged in an 8-SOIC surface-mount configuration, the DS1669S-10 is designed for a wide operating temperature range of -40°C to 85°C. This part is marked as obsolete.



Environmental compliance includes RoHS non-compliant status, REACH unaffected, and Moisture Sensitivity Level 1 (Unlimited).

DS1669S Quick Information

Product Type: Digital Potentiometer
Series: Dallastat™
Canonical Name: DS1669S-10 Digital Potentiometer
Subcategory: Data Acquisition - Digital Potentiometers

DS1669S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DS1669S Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1669S Features

  • 10k Ohm resistance, linear taper.
  • 64 taps for precise adjustment.
  • Up/Down interface control.
  • Non-volatile memory type.
  • Operates from ±4.5V to 8V.

DS1669S Applications

  • Ideal for trimming and calibration circuits.
  • Used in audio volume control applications.
  • Suitable for programmable filter adjustments.
  • Can replace mechanical potentiometers in designs.

DS1669S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the DS1669S?

The DS1669S has a nominal resistance of 10k Ohm.

How many taps does the DS1669S have?

The DS1669S has 64 taps.

What interface does the DS1669S use?

The DS1669S uses an Up/Down (UP/DN) serial interface.

What is the memory type of the DS1669S?

The DS1669S has non-volatile memory.

What is the supply voltage range for the DS1669S?

The supply voltage range is ±4.5V to 8V.

What is the operating temperature range of the DS1669S?

The operating temperature range is -40°C to +85°C.

What package is the DS1669S available in?

The DS1669S is available in a surface-mount 8-SOIC package.
