| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Date Format | |
| Industrial Grade | |
| Interface | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Time Format | |
| Type | |
| Voltage |

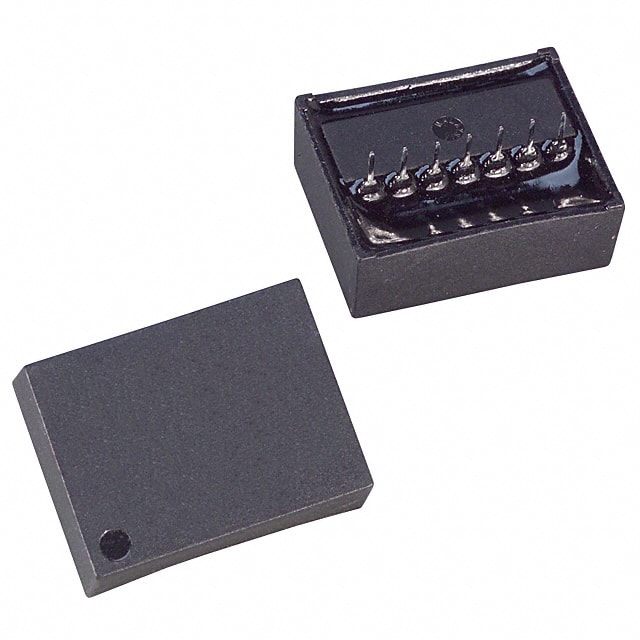

The DS1603 from Analog Devices / Maxim Integrated is an elapsed time counter designed for various applications. It features a 3-wire serial interface for easy integration into systems. This component operates with a voltage supply ranging from 3V to 4.5V and maintains functionality across an operating temperature range of 0°C to 70°C.
The device is housed in a 14-EDIP package, specifically a 14-DIP Module with dimensions of 0.335 inches (8.51mm). It is designed for through-hole mounting, making it suitable for traditional PCB assembly processes. The current consumption is rated at 50µA at 5V.
Key specifications include a binary format for both time and date representation. The DS1603 is identified by its part number DS1603 and distributor part number DS1603-ND. It falls under the Real Time Clocks category, offering a reliable solution for timekeeping and elapsed time measurement needs in electronic designs.
The DS1603 operates with a voltage range of 3V to 4.5V.
The operating temperature range for the DS1603 is 0°C to 70°C.
The DS1603 is supplied in a 14-DIP Module (0.335", 8.51mm) package.
The DS1603 is designed for through-hole mounting.
The DS1603 utilizes a 3-wire serial interface.
