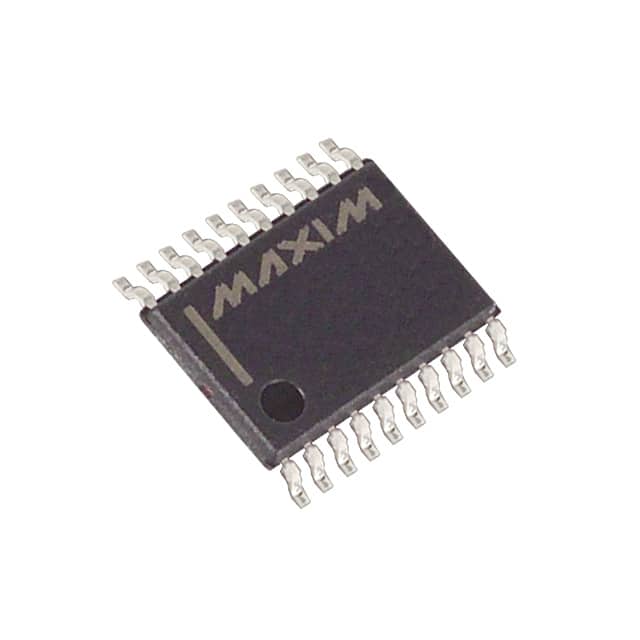

DS1306EN The DS1306EN is a Real Time Clock IC from Analog Devices / Maxim Integrated, featuring SPI interface and 96B of NV RAM. It operates from 2.0V to 5.5V and is available in a 20-TSSOP package.
Mfr Part #:

DS1306EN

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The DS1306EN is a Real Time Clock IC from Analog Devices / Maxim Integrated, featuring SPI interface and 96B of NV RAM. It operates from 2.0V to 5.5V and is available in a 20-TSSOP package.
✓ Total Stock: 67,623 pcs

DS1306EN Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
60,267 pcs
On Request
60267 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,750 pcs
On Request
5750 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,606 pcs
On Request
1606 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1306EN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Date Format
Features
Interface
Lead Spacing
Memory Size
Mounting Type
Operating Temperature
Operating Voltage
Supplier Device Package
Time Format
Type
Voltage
View Similar Products (0)

DS1306EN Description

Short technical summary and product information.

The DS1306EN is a serial alarm real-time clock IC manufactured by Analog Devices / Maxim Integrated. It is designed to manage all timekeeping functions, including counting seconds, minutes, hours, date, month, day of the week, and year, with leap-year compensation valid up to 2100.



This RTC features a 96-byte battery-backed NV RAM for data storage and two time-of-day alarms. It supports standard serial port interfaces, including Motorola SPI modes 1 and 3, and a standard 3-wire interface. The device operates over a wide voltage range of 2.0V to 5.5V and offers an optional industrial temperature range of -40°C to +85°C.



The DS1306EN is available in a compact 20-pin TSSOP package, minimizing space requirements in applications. It also includes dual power supply pins for primary and backup power, with an optional trickle charge output to the backup supply, ensuring continuous timekeeping.



Key features include alarm functionality, leap year compensation, NVSRAM for non-volatile data storage, square wave output, and a trickle-charger. The device supports both 12/24 hour time formats and YY-MM-DD-dd date formats.

DS1306EN Quick Information

Product Type: Real Time Clock
Canonical Name: DS1306EN Serial Alarm Real-Time Clock
Subcategory: Clock/Calendar

DS1306EN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1306EN Features

  • Manages all timekeeping functions including year.
  • 96-byte battery-backed NV RAM for data storage.
  • Supports SPI and 3-wire serial interfaces.
  • Operates from 2.0V to 5.5V with backup power.
  • Available in 20-TSSOP package.

DS1306EN Applications

  • Ideal for battery-backed timekeeping.
  • Suitable for data logging applications.
  • Used in systems requiring alarms.
  • Supports leap year compensation.

DS1306EN FAQs

9 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DS1306EN?

The operating voltage range is 2.0V to 5.5V.

What is the battery voltage range for the DS1306EN?

The battery voltage range is 2.5V to 3.7V.

What is the timekeeping current consumption of the DS1306EN?

The timekeeping current consumption is 25.3µA to 81µA at 2V to 5V.

What is the operating temperature range of the DS1306EN?

The operating temperature range is -40°C to +85°C.

How much NV RAM is available on the DS1306EN?

The DS1306EN has 96 bytes of NV RAM.

What features does the DS1306EN offer?

The DS1306EN features alarm, leap year compensation, NVSRAM, square wave output, and a trickle-charger.

What interface does the DS1306EN use?

The DS1306EN uses an SPI interface.

What time and date formats does the DS1306EN support?

The DS1306EN supports HH:MM:SS (12/24 hr) time format and YY-MM-DD-dd date format.

What is the package type for the DS1306EN?

The DS1306EN is available in a 20-TSSOP package.
