DS125DF410SQE/NOPB The Texas Instruments DS125DF410SQE/NOPB is a quad channel retimer designed for high-speed data transmission. It supports data rates from 9.8 to 12.5 Gbps.
Mfr Part #:

DS125DF410SQE/NOPB

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DS125DF410SQE/NOPB is a quad channel retimer designed for high-speed data transmission. It supports data rates from 9.8 to 12.5 Gbps.
✓ Total Stock: 5,212 pcs
$ Price Range: $18.35

DS125DF410SQE/NOPB Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS125DF410SQE/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Data Rate
Interface
Mounting Type
Number of Channels
Operating Temperature
Power Dissipation
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

DS125DF410SQE/NOPB Description

Short technical summary and product information.

The Texas Instruments DS125DF410SQE/NOPB is a high-performance quad channel retimer. It operates across a data rate range of 9.8 to 12.5 Gbps, making it suitable for demanding communication applications.



This retimer features adaptive equalization up to 34-dB boost at 5 GHz, clock and data recovery (CDR), and decision feedback equalization (DFE). It supports various protocols including 10G-SR/LR, 40G-SR4/LR4, CPRI, Infiniband, and Interlaken. The device operates from a single 2.5-V ±5% power supply and has a typical power dissipation of 180 mW per channel.

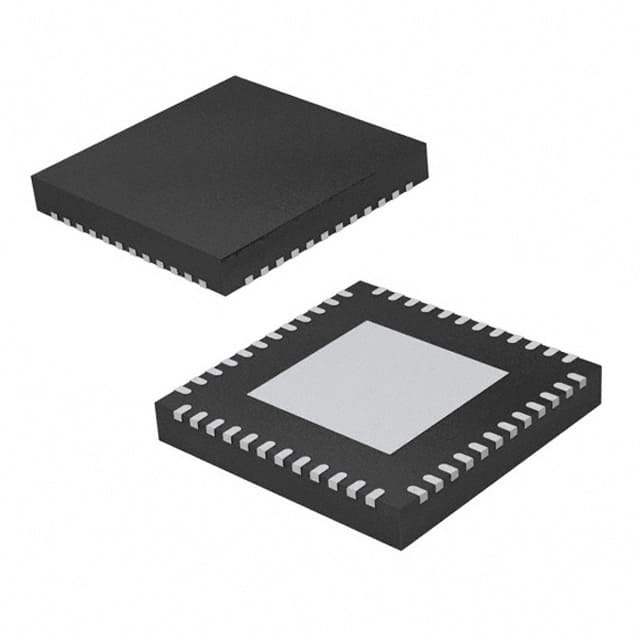

The DS125DF410SQE/NOPB is housed in a 48-WQFN (7x7 mm) package and supports surface mount. Its operating temperature range is -40°C to 85°C. The device offers features like programmable output polarity inversion, input signal detection, and an on-chip eye monitor.



This component is ideal for applications requiring signal integrity enhancement in high-speed serial data links, such as Ethernet and other networking infrastructure.

DS125DF410SQE/NOPB Quick Information

Product Type: Quad Channel Retimer
Canonical Name: DS125DF410SQE/NOPB Quad Channel Retimer
Subcategory: Retimers

DS125DF410SQE/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS125DF410SQE/NOPB Estimated Pricing

Qty Low High
1+ $18.35 $18.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS125DF410SQE/NOPB Features

  • Quad channel retimer with high speed.
  • Supports 9.8 to 12.5 Gbps data rates.
  • Adaptive equalization up to 34-dB boost.
  • Low latency operation at approximately 300ps.
  • Surface mount 48-WQFN (7x7mm) package.

DS125DF410SQE/NOPB Applications

  • Ideal for high-speed Ethernet links.
  • Suitable for CPRI and Infiniband applications.
  • Enhances signal integrity in networking.
  • Used in optical networking systems.

DS125DF410SQE/NOPB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the DS125DF410SQE/NOPB?

The maximum data rate supported is 12.5 Gbps.

How many channels does the DS125DF410SQE/NOPB have?

The device features 4 channels.

What is the operating temperature range for this retimer?

The operating temperature range is -40°C to 85°C.

What type of package is the DS125DF410SQE/NOPB in?

It is supplied in a 48-WQFN (7x7mm) package.

What is the typical power supply voltage for the DS125DF410SQE/NOPB?

The device operates from a single 2.5-V ±5% power supply.

What is the typical power dissipation per channel?

The typical power dissipation is 180 mW/Channel.

What is the typical latency of the DS125DF410SQE/NOPB?

The typical latency is approximately 300 ps.
