| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Type | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Supply Voltage | |
| Technology |

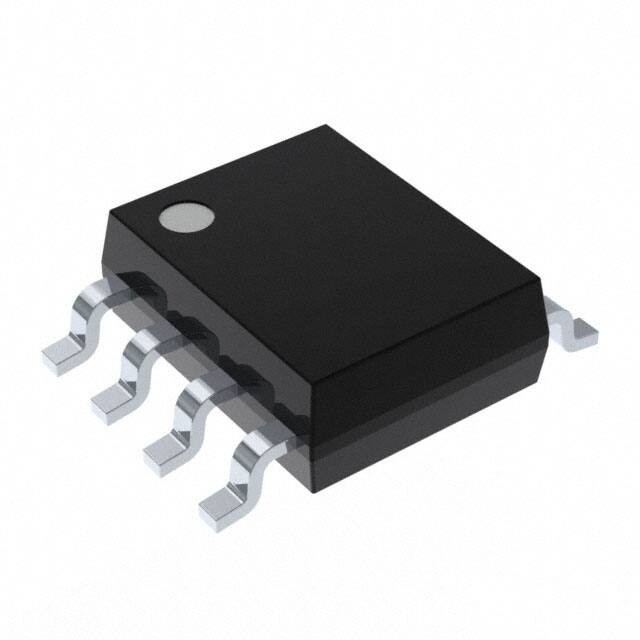

The DS1040Z-500 is a pulse generator delay line integrated circuit manufactured by Dallas Semiconductor. It operates with a supply voltage of 5V and is designed for use within a temperature range of 0°C to 70°C.
This device features a surface mountable 8-SOIC package, facilitating integration into various electronic designs. It is built using advanced CMOS technology, offering benefits associated with delay lines. The component is configured with 5 taps and steps, providing flexibility in operation. The terminal finish is Tin (Sn).
Applications for this type of delay line include digital systems, embedded systems, and clock synchronization. Its design is suitable for a variety of electronic circuits requiring precise timing and signal delay management.
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 5V.
The operating temperature range is 0°C to 70°C.
It uses a PULSE GENERATOR DELAY LINE logic type.
The package is 8-SOIC (0.154, 3.90mm Width).
The mounting type is Surface Mount.
The packaging method is Tube.
