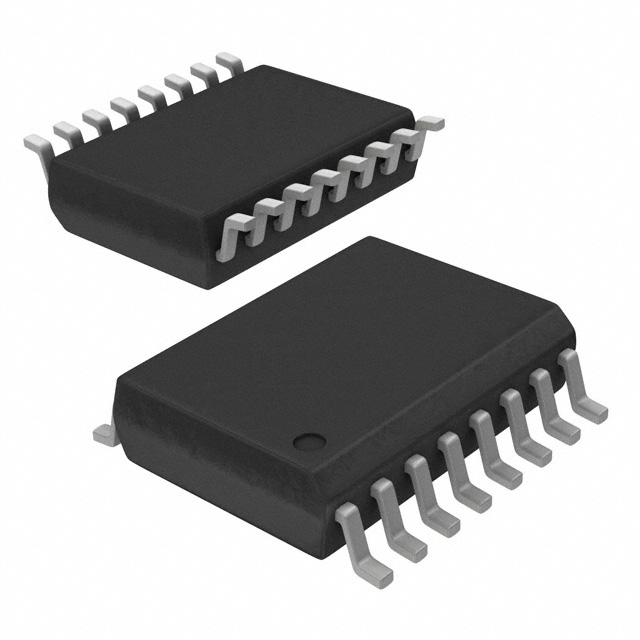

DS1023S-50 The DS1023S-50 is a programmable delay line from Analog Devices Inc./Maxim Integrated. It features 256 taps and a total available delay of 127.5ns.
Mfr Part #:

DS1023S-50

Available from 1 distributors
Mfr Name: Dallas Semiconductor
Dallas Semiconductor
The DS1023S-50 is a programmable delay line from Analog Devices Inc./Maxim Integrated. It features 256 taps and a total available delay of 127.5ns.
✓ Total Stock: 93 pcs
$ Price Range: $0.20

DS1023S-50 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
93 pcs
On Request
93 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1023S-50 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Supply Voltage
View Similar Products (0)

DS1023S-50 Description

Short technical summary and product information.

The DS1023S-50 is a programmable delay line manufactured by Analog Devices Inc./Maxim Integrated. This component offers 256 taps with a tap increment of 500 ps, providing a total available delay of up to 127.5ns. The first tap delay is 16.5ns.



Designed for surface mounting, the DS1023S-50 operates within a supply voltage range of 4.75V to 5.25V and functions across an ambient temperature range of 0°C to 70°C. It is housed in a 16-SOIC package.



This delay line is suitable for applications requiring precise timing control and signal path delays. Its programmable nature allows for flexible implementation in various electronic designs.

DS1023S-50 Quick Information

Product Type: Delay Line
Canonical Name: DS1023S-50 Delay Line
Subcategory: Delay Line

DS1023S-50 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1023S-50 Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1023S-50 Features

  • Programmable delay line with 256 taps.
  • Total available delay up to 127.5ns.
  • Surface mountable in a 16-SOIC package.
  • Operates from 4.75V to 5.25V supply.
  • Wide operating temperature range of 0°C to 70°C.

DS1023S-50 Applications

  • Used for precise signal timing control.
  • Suitable for delay generation circuits.
  • Incorporated in signal processing systems.
  • Applicable in high-speed digital designs.

DS1023S-50 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.75V to 5.25V.

What is the package type?

16-SOIC (0.295", 7.50mm Width)

What is the operating temperature range?

0°C to 70°C.

What is the function of the DS1023S-50?

1-Shot, Programmable delay line.

How many taps does it have?

256 taps.

What is the total available delay?

127.5ns.
