| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Plating | |
| Current Rating | |
| Height | |
| Mounting Type | |
| Number of Pins | |
| Orientation | |
| Pitch |

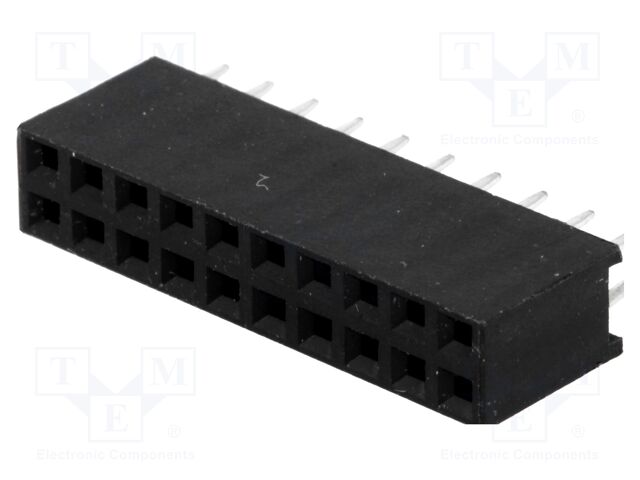

The DS1023-2*10S21 is a female pin header manufactured by Ningbo connfly electronic CO LTD. This component is designed for through-hole mounting and offers 20 positions with a contact pitch of 2.54mm.
Key electrical specifications include a maximum current rating of 3A. The connector features gold-plated contacts for reliable connectivity and a straight spatial orientation. The lead length is 3.2mm and the overall height is 8.5mm. The pinout layout is configured as 2x10.
This pin header is suitable for various electronic applications requiring a robust and standard interconnect solution. Its through-hole mounting ensures a secure connection to printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DS1023-2*10S21 has 20 positions arranged in a 2x10 layout.
The pitch is 2.54 mm.
The current rating is 3 A.
The mounting type is through hole.
The contacts are gold plated.
The orientation is straight.
