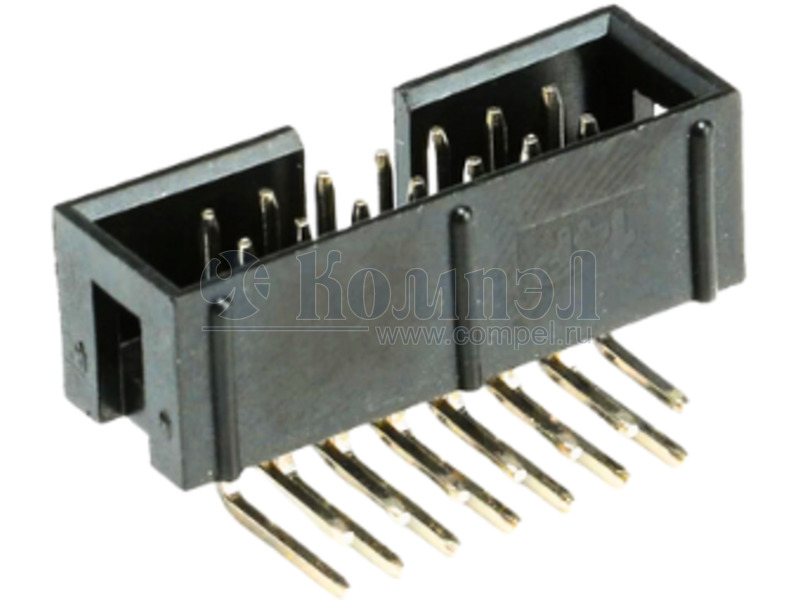

DS1013-14RSIB The Ningbo Connfly DS1013-14RSIB is a 14-contact connector with a 2.54mm pitch, designed for through-hole mounting. It operates at up to 125V AC/DC and handles a current of 3A.
Mfr Part #:

DS1013-14RSIB

Available from 2 distributors
Mfr Name: Ningbo connfly electronic CO LTD
Ningbo connfly electronic CO LTD
The Ningbo Connfly DS1013-14RSIB is a 14-contact connector with a 2.54mm pitch, designed for through-hole mounting. It operates at up to 125V AC/DC and handles a current of 3A.
✓ Total Stock: 464 pcs
$ Price Range: $0.20

DS1013-14RSIB Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
232 pcs
On Request
232 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
232 pcs
On Request
232 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1013-14RSIB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Resistance
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Mounting Type
Number of Contacts
Operating Temperature
Operating Voltage
SVHC Present
View Similar Products (0)

DS1013-14RSIB Description

Short technical summary and product information.

The DS1013-14RSIB from Ningbo Connfly is a flexible flat cable (FFC) connector designed for board mounting. It features 14 contacts with a standard pitch of 2.54mm, making it suitable for various interconnect applications.



This connector is rated for a nominal operating voltage of 125V AC/DC and a current rating of 3A. The contact resistance is a maximum of 20mOhm, and it has a dielectric withstanding voltage of 500V AC. The operating temperature range is from -40°C to 105°C.



Designed for through-hole mounting, the DS1013-14RSIB offers a secure connection. It is supplied in a standard package of 200 pieces per tray. The connector is specified as RoHS3 compliant and has an MSL rating of 1 Unlimited.



This component is part of the DS1013 series, providing reliable connections in electronic systems. Its specifications make it suitable for applications requiring a durable and efficient interconnect solution.

DS1013-14RSIB Quick Information

Product Type: Connector
Series: DS1013
Canonical Name: DS1013-14RSIB Connector
Subcategory: Flexible Flat Cable (FFC) Connectors

DS1013-14RSIB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1013-14RSIB Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1013-14RSIB Features

  • 14 position connector with 2.54mm pitch.
  • Rated for 3A current and 125V AC/DC.
  • Wide -40 to 105°C operating temperature.
  • Through hole mounting for secure connection.
  • RoHS3 compliant with MSL 1 Unlimited.

DS1013-14RSIB Applications

  • Ideal for internal system connections.
  • Suitable for signal and power routing.
  • Used in consumer electronics devices.
  • Applicable in industrial control systems.

DS1013-14RSIB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the DS1013-14RSIB?

125 V AC/DC.

What is the operating temperature range?

-40°C to 105°C.

What is the current rating?

3 A.

What is the maximum contact resistance?

20 mOhm.

What is the minimum insulation resistance?

1000 MOhms.

What is the dielectric withstanding voltage?

500 V AC for 1 minute.

How many contacts does the DS1013-14RSIB have?

14 contacts.
