| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,090 pcs
|
43090 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
7,284 pcs
|
7284 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,565 pcs
|
1565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Control Interface | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The DRV8872DDARQ1 from Texas Instruments is an integrated H-bridge motor driver suitable for automotive applications such as infotainment systems and motorized components. It provides bidirectional control for DC motors, capable of handling up to 3.6A peak current.
Key electrical specifications include a wide operating voltage range from 6.8V to 45V and a low typical RDS(ON) of 565 mΩ for both high-side and low-side FETs. The device operates with a PWM control interface and features a low-power sleep mode with a sleep current of 13 µA.
Integrated protection features include Undervoltage Lockout (UVLO), Overcurrent Protection (OCP), and Thermal Shutdown (TSD), with a fault status output pin (nFAULT) for reporting. The DRV8872DDARQ1 is AEC-Q100 qualified for automotive applications, operating within a temperature range of -40°C to 125°C.

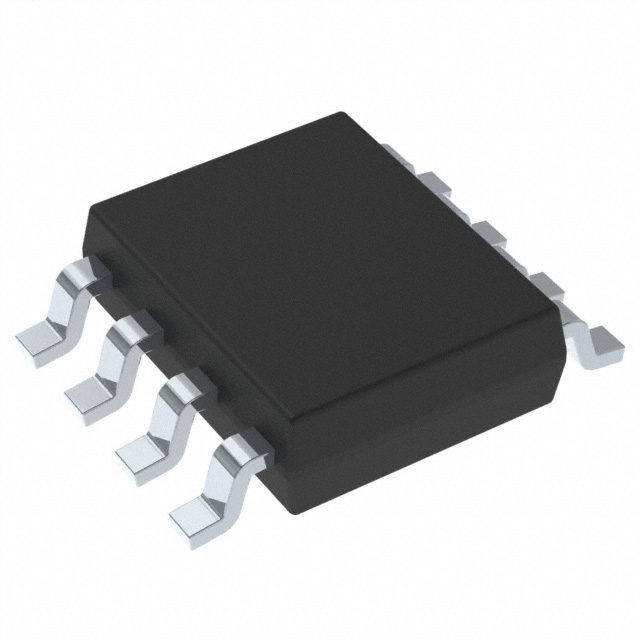

This motor driver is available in an 8-pin PowerSOIC package with a PowerPAD™ measuring 4.9 mm × 6 mm, designed for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DRV8872DDARQ1 operates from 6.8V to 45V.
The DRV8872DDARQ1 has a peak output current of 3.7A.
The typical RDS(ON) (HS + LS) for the DRV8872DDARQ1 is 565 mΩ.
The DRV8872DDARQ1 operates from -40°C to 125°C.
The DRV8872DDARQ1 is available in an 8-pin PowerSOIC package with a PowerPAD™.
