DRV8834

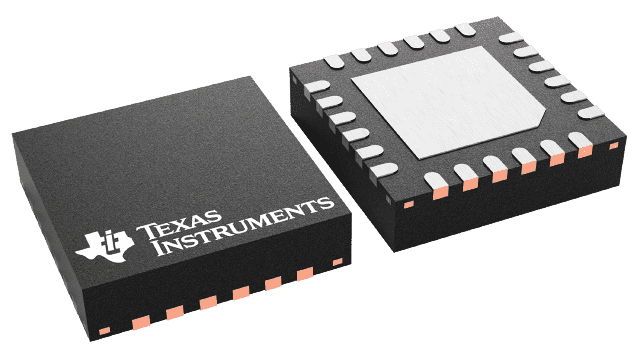

The Texas Instruments DRV8834 is a dual H-bridge motor driver capable of driving two DC motors or one stepper motor. It offers flexible control modes and current regulation.

✓ Total Stock: 48,865 pcs

$ Price Range: $0.99

DRV8834 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	48,865 pcs On Request	48865 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DRV8834 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Mounting Type	Surface Mount
Operating Temperature Range	-40°C to 85°C
SVHC Present	Present
Storage Temperature	°C ~ °C
Supply Voltage	2.5 V to 10.8 V
Tape & Reel	No

View Similar Products (0)

DRV8834 Description

Short technical summary and product information.

The DRV8834 from Texas Instruments is a versatile dual H-bridge current-control motor driver designed for applications such as battery-powered toys, printers, and cameras. It can drive two DC motors or a single bipolar stepper motor.

This device supports a wide power supply voltage range from 2.5 V to 10.8 V. It provides an output current of 1.5 A continuous and 2.2 A peak per H-bridge at 25°C with a 5 V VM supply. The driver features low RDS(ON) of 305 mΩ (HS + LS) and includes PWM winding current regulation and limiting.

Control is offered through two modes: built-in indexer logic with STEP/DIRECTION control for up to 1/32-step microstepping, or PHASE/ENABLE control for driving external references for microstepping. Dynamic tBLANK and mixed decay modes are incorporated for smooth microstepping performance. Internal shutdown functions provide protection against overcurrent, short circuits, and undervoltage, along with overtemperature protection. A low-power sleep mode is also available.

The DRV8834 is available in thermally enhanced surface-mount packages, including HTSSOP and VQFN, both with a PowerPAD. These packages are eco-friendly and RoHS compliant.

DRV8834 Quick Information

Product Type: Motor Driver

Canonical Name: DRV8834 Dual-Bridge Stepper or DC Motor Driver

Subcategory: Stepper Motor Driver

DRV8834 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DRV8834 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

DRV8834 Features

Dual H-bridge current-control motor driver.
Drives two DC motors or one stepper motor.
1.5-A continuous, 2.2-A peak output current.
Wide 2.5-V to 10.8-V supply voltage range.
Up to 1/32-step microstepping support.

DRV8834 Applications

Suitable for battery-powered toys.
Used in POS printers.
Applicable for video security cameras.
Designed for office automation machines.
Can be used in robotics applications.

DRV8834 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the DRV8834?

The DRV8834 operates from a supply voltage of 2.5 V to 10.8 V.

What is the continuous output current per H-bridge?

The DRV8834 provides 1.5 A continuous output current per H-bridge at 25°C with a 5 V VM supply.

What is the peak output current per H-bridge?

The DRV8834 can support peak currents of up to 2.2 A per H-bridge at 25°C with a 5 V VM supply.

What is the on-resistance of the DRV8834?

The HS + LS on-resistance is 305 mΩ at a VM of 5 V and 25°C.

How many microstepping levels does the DRV8834 support?

The DRV8834 supports up to 1/32-step microstepping.

What are the control modes for the DRV8834?

The DRV8834 supports both STEP/DIRECTION control with built-in indexer logic and PHASE/ENABLE control.

What is the operating temperature range of the DRV8834?

The operating temperature range for the DRV8834 is -40°C to 85°C.
