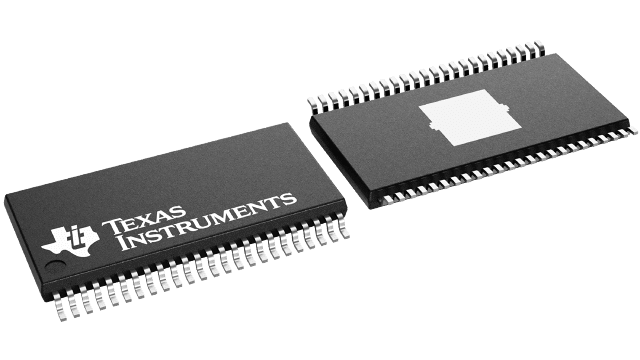

DRV8823DCAR The Texas Instruments DRV8823DCAR is a motor driver IC designed for bipolar stepper motors. It operates from an 8V to 32V supply and offers a peak output current of 1.5A.
Mfr Part #:

DRV8823DCAR

Available from 5 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DRV8823DCAR is a motor driver IC designed for bipolar stepper motors. It operates from an 8V to 32V supply and offers a peak output current of 1.5A.
✓ Total Stock: 60,846 pcs
$ Price Range: $2.20

DRV8823DCAR Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DRV8823DCAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

DRV8823DCAR Description

Short technical summary and product information.

The Texas Instruments DRV8823DCAR is an integrated motor driver solution featuring four H-bridge drivers. This device is suitable for driving bipolar stepper motors and offers a wide operating supply voltage range from 8V to 32V, with a peak output current of 1.5A per winding. It utilizes a serial digital control interface for simplified control with minimal digital signals.



The DRV8823DCAR supports microstepping with up to 8 levels, programmable current regulation, and selectable slow or mixed decay modes. The driver includes internal shutdown protection for undervoltage, overtemperature, and overcurrent events. It is housed in a thermally-enhanced 48-HTSSOP surface mount package.



This motor driver is ideal for applications requiring precise motor control, such as in printers and other office automation equipment. Its integrated nature and protective features simplify design and enhance reliability.

DRV8823DCAR Quick Information

Product Type: Motor Driver
Canonical Name: DRV8823DCAR Dual Bipolar Stepper or Quad H-Bridge Motor Driver
Subcategory: Stepper Motor Drivers

DRV8823DCAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DRV8823DCAR Estimated Pricing

Qty Low High
1+ $2.20 $2.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DRV8823DCAR Features

  • Drives bipolar stepper motors with 4 H-bridges.
  • Operates from 8V to 32V supply voltage.
  • Provides 1.5A peak output current per winding.
  • Features serial digital control interface.
  • Supports up to 8 microstepping levels.

DRV8823DCAR Applications

  • Suitable for general-purpose bipolar stepper motor control.
  • Ideal for automated machinery and robotics actuators.
  • Used in 3D printer and CNC stage positioning.
  • Applicable in office automation and industrial equipment.

DRV8823DCAR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DRV8823DCAR?

The DRV8823DCAR operates from 8V to 32V.

What is the peak output current of the DRV8823DCAR?

The peak output current is 1.5A.

What type of motor does the DRV8823DCAR drive?

The DRV8823DCAR is designed for bipolar stepper motors.

What is the control interface for the DRV8823DCAR?

The DRV8823DCAR uses a serial control interface.

What is the operating temperature range for the DRV8823DCAR?

The operating temperature range is -40°C to 150°C (TJ).

What package is the DRV8823DCAR supplied in?

The DRV8823DCAR is supplied in a 48-HTSSOP package.
