DRV8801RTYT The Texas Instruments DRV8801RTYT is an integrated H-bridge motor driver. It operates from 8V to 38V and can deliver a peak output current of 2.8A.
Mfr Part #:

DRV8801RTYT

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DRV8801RTYT is an integrated H-bridge motor driver. It operates from 8V to 38V and can deliver a peak output current of 2.8A.
✓ Total Stock: 51,657 pcs
$ Price Range: $1.79

DRV8801RTYT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
51,657 pcs
On Request
51657 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DRV8801RTYT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Interface
Current
Features
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Supplier Package
Technology
Topology
Voltage
View Similar Products (0)

DRV8801RTYT Description

Short technical summary and product information.

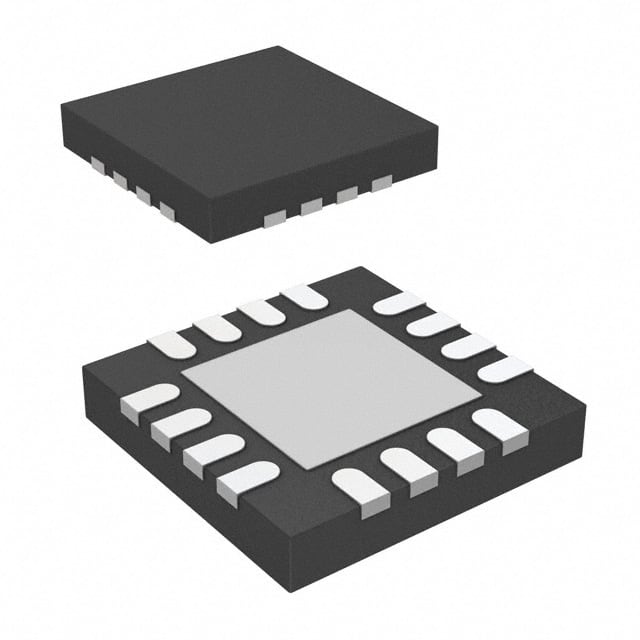

The Texas Instruments DRV8801RTYT is a versatile H-bridge motor driver designed for applications requiring precise motor control. This device integrates both control logic and power stage, simplifying system design. It supports a wide operating supply voltage range from 8V to 38V, making it suitable for various power requirements.



The DRV8801RTYT features a peak output current capability of 2.8A and low RDS(ON) MOSFETs, ensuring efficient power delivery. It includes a low-power sleep mode to minimize quiescent current draw. The driver is equipped with comprehensive protection features, including undervoltage lockout, overcurrent protection, and overtemperature shutdown, enhancing reliability.



This motor driver is available in a 16-QFN (4x4) surface-mount package, offering a compact footprint for integration into space-constrained designs. The simple PHASE-ENABLE interface allows for easy connection to controller circuits. Protection functions are indicated via an nFAULT pin, providing system status.



Key specifications include a supply voltage range of 8V to 38V, a peak output current of 2.8A, and a typical RDS(ON) of 830mΩ. The operating temperature range is -40°C to 150°C.

DRV8801RTYT Quick Information

Product Type: H-bridge Motor Driver
Canonical Name: DRV8801 H-bridge motor driver
Subcategory: H-Bridge

DRV8801RTYT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DRV8801RTYT Estimated Pricing

Qty Low High
1+ $1.79 $1.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

DRV8801RTYT Features

  • Integrated H-bridge motor driver.
  • Wide 8V to 38V operating voltage.
  • 2.8A peak output current.
  • Low RDS(ON) MOSFETs.
  • Includes overcurrent and overtemperature protection.

DRV8801RTYT Applications

  • Drives brushed DC motors.
  • Suitable for stepper motor windings.
  • Can drive solenoids.
  • General purpose motor control.

DRV8801RTYT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DRV8801RTYT?

The DRV8801RTYT operates from 8V to 38V.

What is the peak output current of the DRV8801RTYT?

The peak output current is 2.8A.

What package type is the DRV8801RTYT available in?

The DRV8801RTYT is available in a 16-QFN (4x4) exposed pad package.

What is the operating temperature range for this motor driver?

The operating temperature range is -40°C to 150°C.

Does the DRV8801RTYT have overcurrent protection?

Yes, the DRV8801RTYT includes overcurrent protection.

DRV8801RTYT Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
DRV8801RTYR
DRV8801RTYR
Texas Instruments
The Texas Instruments DRV8801RTYR is an H-bridge motor driver capable of handling 8V to 36V supply voltages and delivering up to 2.8A peak output current. It features low RDS(on) and a compact surface-mount package.
