Mfr Part #:

DRV8801AQRMJRQ1

The Texas Instruments DRV8801AQRMJRQ1 is an integrated H-bridge motor driver designed for automotive applications. It offers a peak output current of 2.8A and operates from 6.5V to 36V.

✓ Total Stock: 30,158 pcs

$ Price Range: $1.22

DRV8801AQRMJRQ1 Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	25,829 pcs On Request	25829 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	2,850 pcs On Request	2850 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,079 pcs On Request	1079 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	400 pcs On Request	400 pcs	On Request	1	On Request	On Request	22+	On Request	On Request

DRV8801AQRMJRQ1 Description

Short technical summary and product information.

The DRV8801AQRMJRQ1 from Texas Instruments is a versatile, fully integrated H-bridge motor driver suitable for brushed DC motors or stepper motor windings. It features a simple PH/EN interface for easy control and DMOS technology for low on-resistance outputs.

This automotive-qualified driver can handle peak output currents up to 2.8A and operates within a supply voltage range of 6.5V to 36V. Key electrical characteristics include a low RDS(ON) of 830 mΩ and a low-power sleep mode with a quiescent current of 10 µA. The device is housed in a 16-WQFN package with wettable flanks for enhanced solder joint reliability.

Integrated protection features include undervoltage lockout (UVLO), overcurrent protection (OCP), short-to-supply and short-to-ground protection, and overtemperature warning/shutdown. These features enhance system reliability and robustness in demanding applications.

DRV8801AQRMJRQ1 Quick Information

Product Type: H-Bridge Motor Driver

Canonical Name: DRV8801AQRMJRQ1 40-V, 2.8-A H-bridge motor driver

Subcategory: H-Bridge

DRV8801AQRMJRQ1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DRV8801AQRMJRQ1 Estimated Pricing

Qty	Low	High
1+	$1.22	$1.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

DRV8801AQRMJRQ1 Features

Automotive qualified H-bridge motor driver.
2.8A peak output current capability.
Wide 6.5V to 36V operating voltage range.
Low 830 mΩ on-resistance outputs.
Integrated overcurrent and overtemperature protection.

DRV8801AQRMJRQ1 Applications

Drives brushed DC motors.
Drives stepper motor windings.
Suitable for solenoid control.
Automotive applications.

DRV8801AQRMJRQ1 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage range of the DRV8801AQRMJRQ1?

The supply voltage range is 6.5 V to 36 V.

What package does the DRV8801AQRMJRQ1 come in?

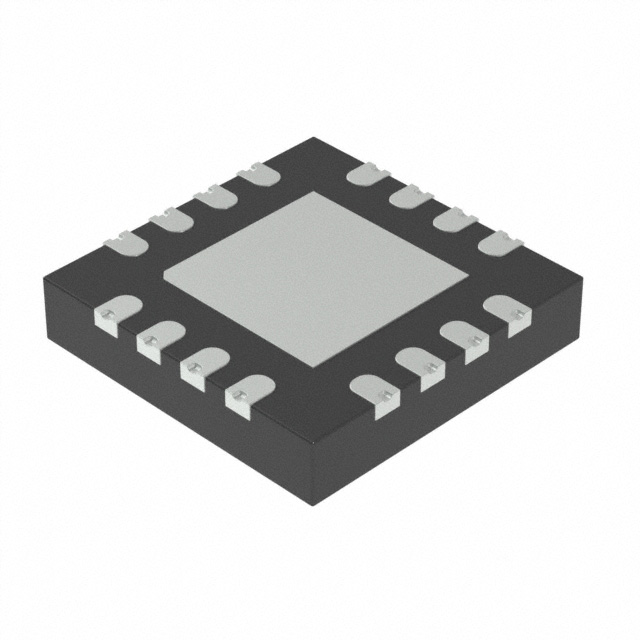

It comes in a 16-WQFN Exposed Pad package (4 mm x 4 mm).

What is the operating temperature range of the DRV8801AQRMJRQ1?

The operating temperature range is -40°C to 125°C.

What is the peak output current of this motor driver?

The peak output current is 2.8 A.

What control interface does the DRV8801AQRMJRQ1 use?

It uses a hardware GPIO interface with PH/EN control mode.

Is the DRV8801AQRMJRQ1 suitable for bipolar motors?

Yes, it is designed for bipolar brushed DC motors.

Category	Motor Drivers, Controllers
Manufacturer Name	Texas Instruments
AEC Qualified	Yes
Applications	Automotive
Automotive Grade	Yes
Control Interface	Hardware (GPIO)
Current	2.8 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type	Bipolar
Mounting Type	Surface Mount, Wettable Flank
Operating Temperature	-40°C to 125°C
Output Configuration	Half Bridge (2)
Supplier Device Package	16-WQFN (4x4)
Supplier Package	16-WQFN (4x4)
Technology	DMOS
Voltage	6.5 V to 36 V
