| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
522 pcs
|
522 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Quiescent Current | |
| Supplier Device Package | |
| Supply Voltage | |
| Technology | |
| Turn On Time | |
| Voltage |
The DRV8601ZQVR from Texas Instruments is a single-supply haptic driver optimized for driving DC motors or linear vibrators using a single-ended PWM input signal. This integrated motor driver provides a 400mA output current and operates within a supply voltage range of 2.5V to 5.5V.
Key electrical characteristics include a typical quiescent current of 1.7mA and input logic thresholds of 1.8V. The device offers differential output drive, enabling quick polarity reversal for motor speed control and stopping. Its fast turn-on time of 100 µs makes it suitable for mobile phones and portable electronic devices.

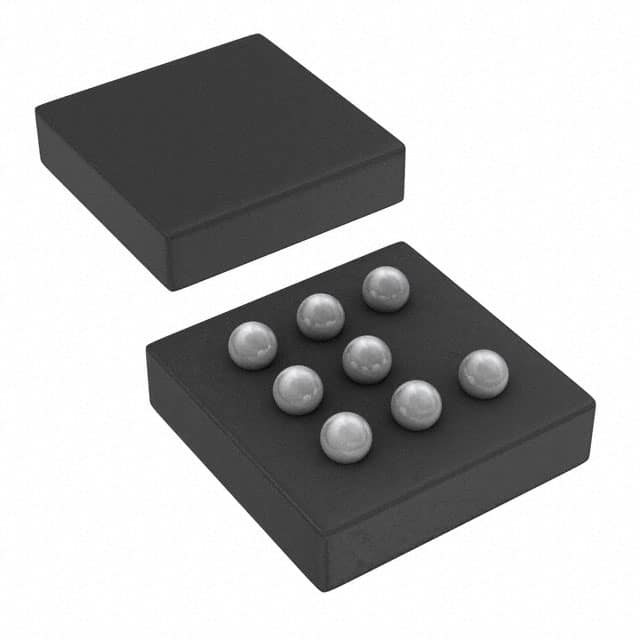

The DRV8601ZQVR is housed in an 8-BGA Microstar Junior package with surface mount mounting type. It operates across a wide temperature range of -40°C to 150°C (TJ). The driver is designed for applications requiring precise motor control and haptic feedback.
This component is classified as a Motor Driver, specifically a Fully Integrated, Control and Power Stage driver, supporting ERM and LRA motor types. It is RoHS3 compliant and Lead Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DRV8601ZQVR has an output current of 400 mA.
The DRV8601ZQVR operates from a supply voltage range of 2.5V to 5.5V.
The operating temperature range for the DRV8601ZQVR is -40°C to 150°C (TJ).
The DRV8601ZQVR can drive ERM and LRA motor types.
The DRV8601ZQVR is available in an 8-BGA Microstar Junior (2x2) package.
Yes, the DRV8601ZQVR is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for the DRV8601ZQVR is 1 Unlimited.
