DRV8332DKD The Texas Instruments DRV8332DKD is a half bridge driver IC designed for DC motors and general-purpose applications. It offers robust fault protection and a PWM interface.
Mfr Part #:

DRV8332DKD

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DRV8332DKD is a half bridge driver IC designed for DC motors and general-purpose applications. It offers robust fault protection and a PWM interface.
✓ Total Stock: 8,287 pcs
$ Price Range: $0.75

DRV8332DKD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
5,166 pcs
On Request
5166 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,121 pcs
On Request
3121 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DRV8332DKD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
Supplier Device Package
Technology
Voltage
Voltage Supply
View Similar Products (0)

DRV8332DKD Description

Short technical summary and product information.

The DRV8332DKD from Texas Instruments is an integrated circuit designed as a half bridge driver. It is suitable for applications involving DC motors and general-purpose tasks. This device features a Power MOSFET technology and supports an output current of up to 8A per channel, with a peak output current capability of 13A.



The driver operates with a supply voltage range of 10.8V to 13.2V and can handle load voltages from 0V to 52.5V. It includes essential features such as a bootstrap circuit for high-side driver operation and a status flag for monitoring. For protection, it incorporates current limiting, over-temperature shutdown, short-circuit protection, and undervoltage lockout (UVLO).

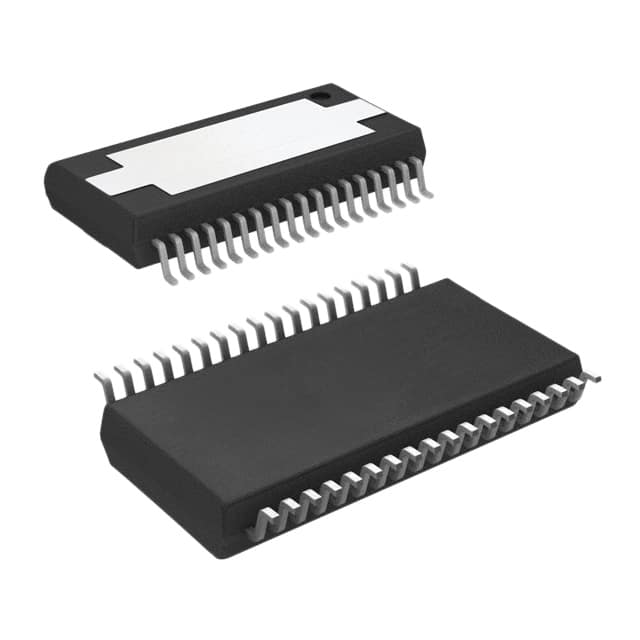

Designed for surface mounting, the DRV8332DKD comes in a 36-HSSOP package with an exposed pad, also referred to as 36-BSSOP (0.433" | 11.00mm Width). The operating temperature range is -40°C to 150°C (TJ), making it suitable for demanding environments. Its interface is PWM compatible, and it is designed to drive inductive loads.

DRV8332DKD Quick Information

Product Type: Half Bridge Driver
Canonical Name: DRV8332DKD Half Bridge Driver
Subcategory: Half Bridge Driver

DRV8332DKD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DRV8332DKD Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

DRV8332DKD Features

  • Half bridge (3) driver for DC motors.
  • 8A continuous output current capability.
  • Supports load voltages up to 52.5V.
  • Integrated fault protection features.
  • Surface mountable 36-HSSOP package.

DRV8332DKD Applications

  • Drives DC motors in industrial applications.
  • Used in general purpose inductive loads.
  • Suitable for brushed DC motor control.
  • Ideal for PWM-controlled motor drives.

DRV8332DKD FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating supply voltage range for the DRV8332DKD?

The supply voltage range is 10.8V to 13.2V.

What is the package type for the DRV8332DKD?

The device is available in a 36-BSSOP (0.433" width) exposed pad package, also known as 36-HSSOP.

What is the operating temperature range of the DRV8332DKD?

The junction temperature range is -40°C to 150°C.

What is the output current rating of the DRV8332DKD?

8A continuous per channel, 13A peak.

What protection features does the DRV8332DKD include?

Current limiting, over-temperature protection, short-circuit protection, and undervoltage lockout (UVLO).

What is the interface type for the DRV8332DKD?

PWM (Pulse Width Modulation) interface.
