Mfr Part #:

DRV8316RRGFR

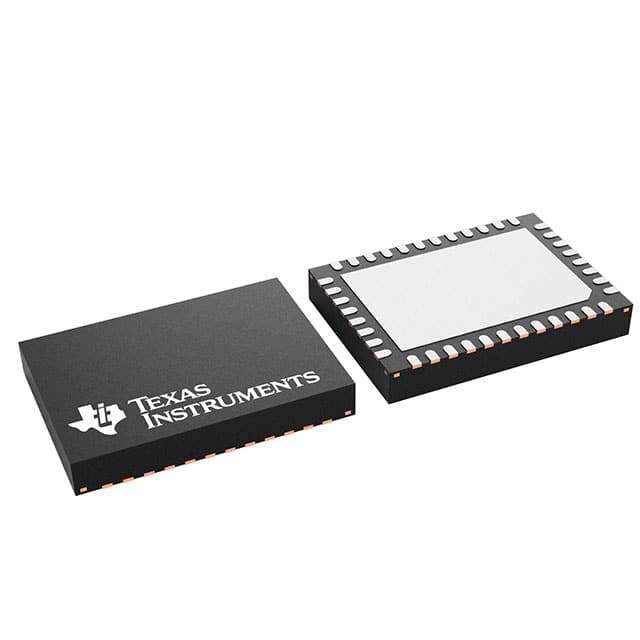

Name: DRV8316RRGFR
Brand: Texas Instruments
SKU: DRV8316RRGFR

Mfr Name: Texas Instruments

40-V MAX 8-A PEAK 3-PHASE MOTOR

Stock on Request

DRV8316RRGFR Description

Short technical summary and product information.

40-V MAX 8-A PEAK 3-PHASE MOTOR

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Texas Instruments
Applications	Camera, Printer
Current	8A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM, SPI
Motor Type	Multiphase
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)
Output Configuration	Half Bridge (3)
Supplier Device Package	40-VQFN (7x5)
Technology	Power MOSFET
Voltage	4.5V ~ 35V
