| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The DRV8303DCA from Texas Instruments is an integrated circuit designed as a 3-phase gate driver for motor drive applications. It supports a wide operating supply voltage range from 6V to 60V, making it versatile for various power requirements.
This device features an SPI interface for control and communication. It provides 1.7A of source current and 2.3A of sink current capability, suitable for driving N-channel MOSFETs in half-bridge configurations. The DRV8303DCA operates within a temperature range of -40°C to 125°C.
Packaged in a 48-HTSSOP, the DRV8303DCA is designed for surface mounting. Its architecture includes features for controlling commutation and direction management, making it a functional component for brushless DC (BLDC) motor applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 6V to 60V.
The operating temperature range is -40°C to 125°C.

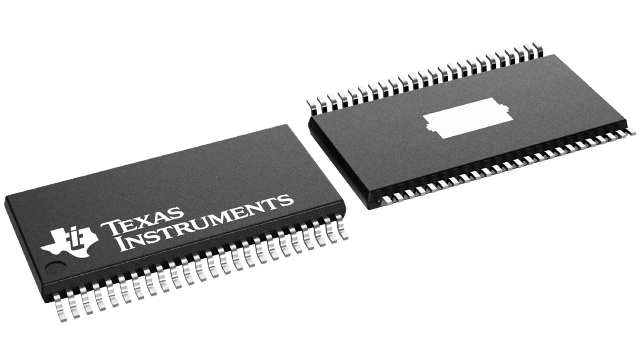

The DRV8303DCA is available in a 48-HTSSOP package (48-TFSOP with exposed pad).
The DRV8303DCA provides 1.7A source and 2.3A sink gate drive current.
The DRV8303DCA uses an SPI control interface.
The DRV8303DCA supports brushless DC (BLDC) motors.
The output configuration is a pre-driver with three half bridges.
