| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,783 pcs
|
21783 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Current | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensing Range | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The DRV5055A4QDBZR from Texas Instruments is a ratiometric linear Hall effect sensor designed for precise position sensing applications. It operates from a wide voltage range of 3V to 5.5V and provides an analog output proportional to the applied magnetic flux density. The quiescent output voltage is centered at VCC/2.

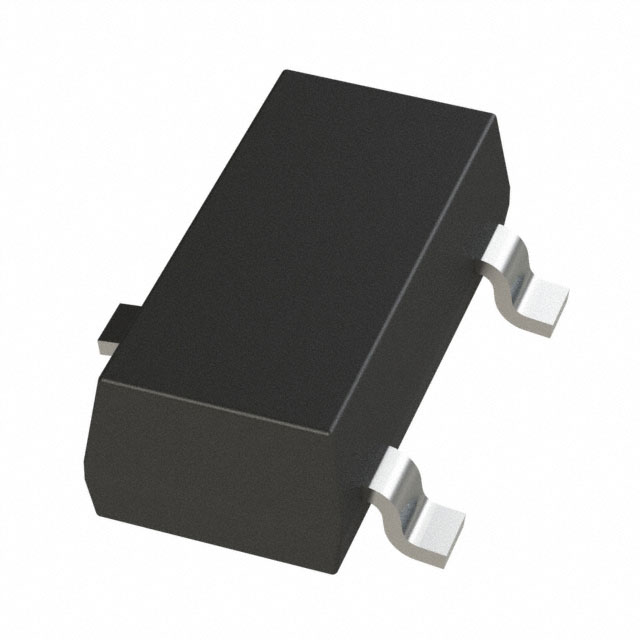

This sensor features a sensing range of ±169mT and a fast 20kHz sensing bandwidth, making it suitable for dynamic applications. It is available in a compact SOT-23-3 surface-mount package. The device also includes temperature compensation for consistent performance across its operating temperature range of -40°C to 125°C.
Applications for the DRV5055A4QDBZR include industrial automation, robotics, home appliances, gamepads, and medical devices. Its ratiometric architecture helps eliminate errors from VCC tolerance when used with a compatible ADC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DRV5055A4QDBZR operates from 3V to 3.63V and 4.5V to 5.5V.
The sensing range is ±169mT.
The bandwidth is 20kHz.
It provides an analog voltage output.
The operating temperature range is -40°C to 125°C.
It is supplied in a SOT-23-3 package.
