The DRV5032FADMRR from Texas Instruments is an ultra-low-power digital-switch Hall effect sensor designed for compact and battery-sensitive applications. This omnipolar switch features a wide operating voltage range of 1.65V to 5.5V and operates reliably across a temperature range of -40°C to 85°C.
Key electrical characteristics include a typical operating current as low as 0.54μA at 5Hz sampling rate, making it ideal for power-critical designs. The sensor has a magnetic threshold of 4.8mT (BOP) and a release point of 0.5mT (BRP), with a push-pull output type. It is sensitive to both north and south poles.

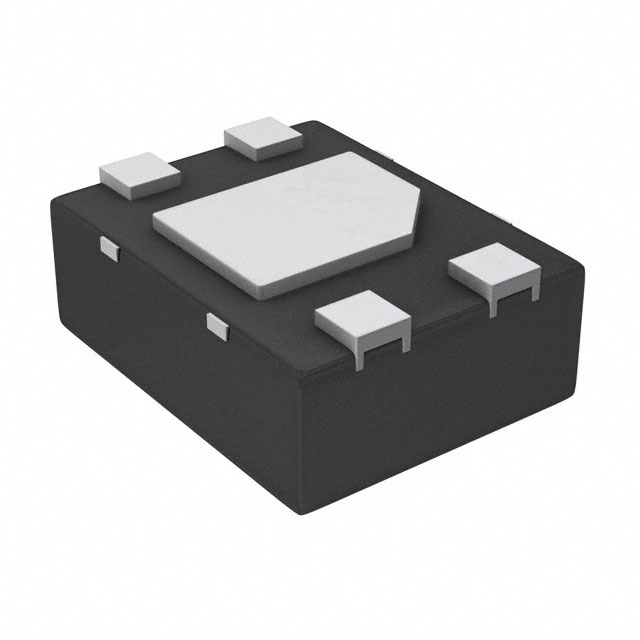

The device is available in a 4-X2SON surface-mount package, measuring 1.1x1.4mm, with an exposed pad for enhanced thermal performance. The standard tape and reel quantity is 3,000 units, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DRV5032FADMRR operates from a voltage range of 1.65V to 5.5V.
The DRV5032FADMRR has an operating temperature range of -40°C to 85°C.
The magnetic threshold (BOP) for the DRV5032FADMRR is 4.8mT, with a release point (BRP) of 0.5mT.
The DRV5032FADMRR features a push-pull output type.
The DRV5032FADMRR is supplied in a 4-X2SON surface-mount package.
The DRV5032FADMRR has an ultra-low power consumption, with a typical current draw of 0.54μA at a 5Hz sampling rate.
