| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,540 pcs
|
1540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Carrier | |
| Gain Drift | |
| Gain Error | |
| Linearity | |
| Mounting Type | |
| Noise | |
| Offset | |
| Offset Drift | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Pin-selectable Voltage | |
| Precision Reference Accuracy | |
| Precision Reference Drift | |
| Selectable Ratiometric Mode | |
| Sensing Range | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The DRV425RTJT from Texas Instruments is a fully-integrated fluxgate magnetic sensor designed for open-loop applications requiring precise single-axis magnetic field measurements. This device enables electrically-isolated, high-sensitivity measurements of both DC and AC magnetic fields.
Key electrical specifications include an operating voltage range of 3.0V to 5.5V and selectable bandwidths of 47kHz or 32kHz. The sensor offers a high-precision fluxgate sensor with a maximum sensing range of ±2mT. It features low offset, low offset drift (±5nT/°C typical), low gain error (0.04% typical), and low linearity error (±0.1%). Diagnostic features like overrange and error flags are also included.

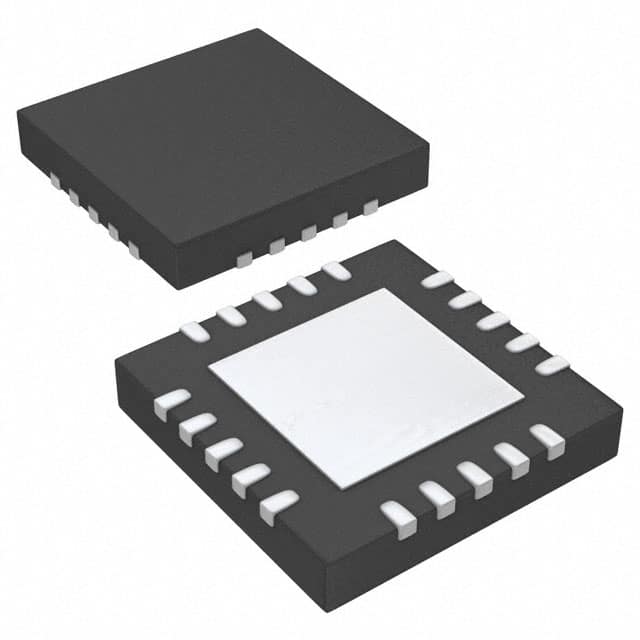

The DRV425RTJT is housed in a 20-QFN (4x4) package and is designed for surface mount applications. It operates within a temperature range of -40°C to 125°C. The device provides an analog voltage output proportional to the sensed magnetic field, with selectable pin voltages of 2.5V or 1.65V and a selectable ratiometric mode.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.70 | $4.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.0V to 5.5V.
The operating temperature range is -40°C to 125°C.
The sensing range is ±2mT.
The selectable bandwidths are 47kHz and 32kHz.
The DRV425RTJT is available in a 20-QFN (4x4) package.
