| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361,600 pcs
|
361600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,251 pcs
|
6251 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The DRV101T is a low-side power switch from Texas Instruments that utilizes a pulse-width modulated (PWM) output. It is optimized for driving electromechanical devices such as valves, solenoids, relays, and actuators, as well as thermal devices like heaters and lamps.
Key features include a high output drive capability of 2.3A and a wide supply voltage range from +9V to +60V. The device incorporates an internal 24kHz oscillator, digital control input, and adjustable delay and duty cycle. It also provides an over/under current indicator and is fully protected with thermal shutdown and internal current limit.

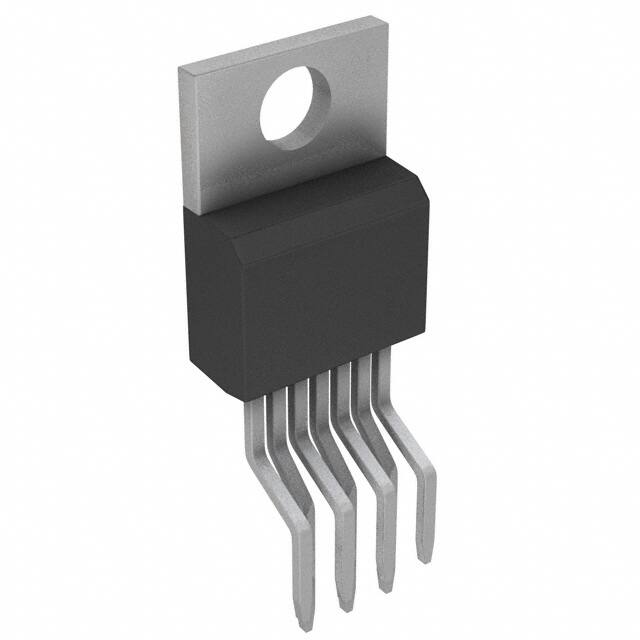

The DRV101T is available in a 7-lead TO-220 package with formed leads, suitable for through-hole mounting. Its rugged design and PWM operation conserve power and reduce heat rise, contributing to higher reliability in industrial control, factory automation, and fluid flow systems.
Applications include driving solenoids, positioners, actuators, high power relays, valves, clutches, brakes, and electrical heaters. The adjustable PWM allows for fine control of power delivery, and the device can be configured for a strong initial closure followed by a "soft" hold mode for power savings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DRV101T operates with a supply voltage range of +9V to +60V.
The DRV101T has a maximum output current limit of 3A.
The DRV101T is specified for an operating temperature range of -40°C to +85°C.
The DRV101T is available in a 7-lead TO-220 package with formed leads.
The DRV101T is a PWM Solenoid/Valve Driver.
