| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

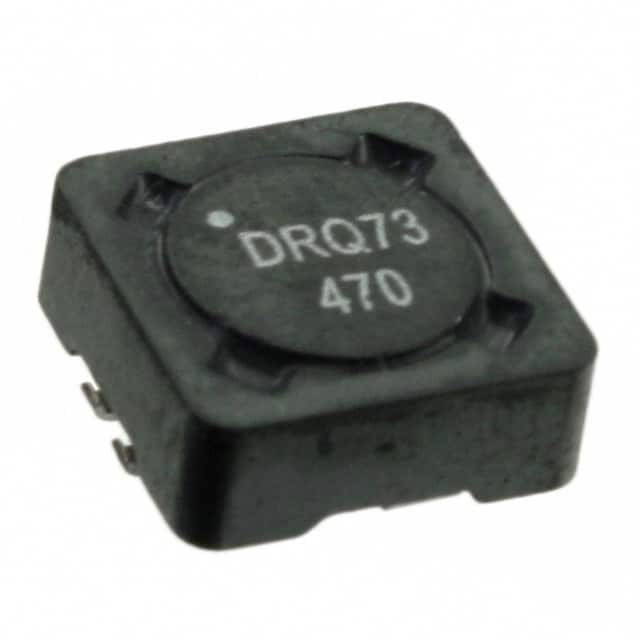

The DRQ73-470-R is a surface-mount coupled inductor array manufactured by Eaton - Electronics Division. It features two coils with an inductance of 48.62 µH per coil and a tolerance of ±20%. The component is shielded to minimize electromagnetic interference.
Electrical specifications include a current rating of 542 mA and a saturation current of 1.14 A. The DC resistance is 241 mOhm. The operating temperature range is -40°C to 125°C, suitable for a wide range of environments.
The inductor array is housed in a nonstandard package measuring 7.60 mm x 7.60 mm with a height of 3.55 mm. It is designed for surface mount assembly, making it suitable for automated PCB manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.88 | $0.88 |
| 500+ | $0.76 | $0.76 |
| 1,350+ | $0.58 | $0.58 |
| 2,700+ | $0.45 | $0.45 |
| 4,050+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 48.62 µH per coil.
The current rating is 542 mA per coil.
The operating temperature range is -40°C to 125°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The package is nonstandard, measuring 7.60 mm x 7.60 mm with a height of 3.55 mm.
It has 2 coils.
The DC resistance is 241 mOhm.
