| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
126 pcs
|
126 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Input Voltage (AC) | |
| Input Voltage DC | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current - Output 1 | |
| Output Current - Output 2 | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Voltage | |
| Width |

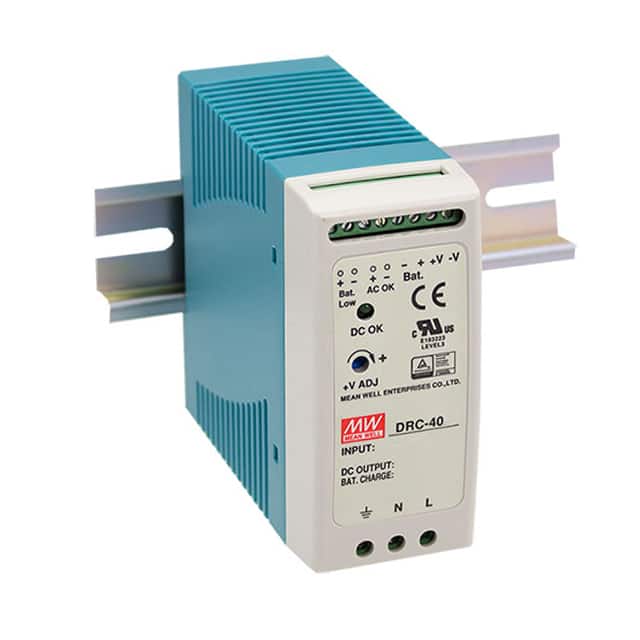

The Mean Well USA DRC-40A is a 40W dual-output AC/DC DIN Rail power supply delivering two isolated 13.8V outputs, one rated at 1.9A and the other at 1A. It accepts a universal AC input ranging from 90 to 264VAC and also supports a nominal 127VDC input (range not specified). The unit achieves up to 86% efficiency and operates over a wide temperature range of -30°C to 70°C with derating.
This power supply features adjustable output voltage and is designed for ITE (commercial) applications. It has a compact metal enclosure measuring 100.0mm x 40.0mm x 90.0mm and mounts directly onto a DIN rail. Safety approvals include CB, CE, cURus, and TUV, and the unit is RoHS3 compliant.
Its dual output configuration makes it suitable for powering systems that require two separate 13.8V rails, such as control circuits, sensors, or communication equipment. The built-in adjustable output allows fine-tuning for specific voltage needs within the 13.8V nominal range.
The DRC-40A operates from -30°C to 70°C with derating.
Yes, the DRC-40A is RoHS3 compliant.
It has two outputs: Output 1 is 13.8V at 1.9A, Output 2 is 13.8V at 1A, total power 40W.
Yes, the DRC-40A accepts both AC (90-264VAC) and DC (nominal 127VDC) input.
The efficiency is 86%.
It is approved by CB, CE, cURus, and TUV.
