| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
835 pcs
|
835 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Inductance | |
| Mounting Type | |
| Shielding | |
| Termination Style |

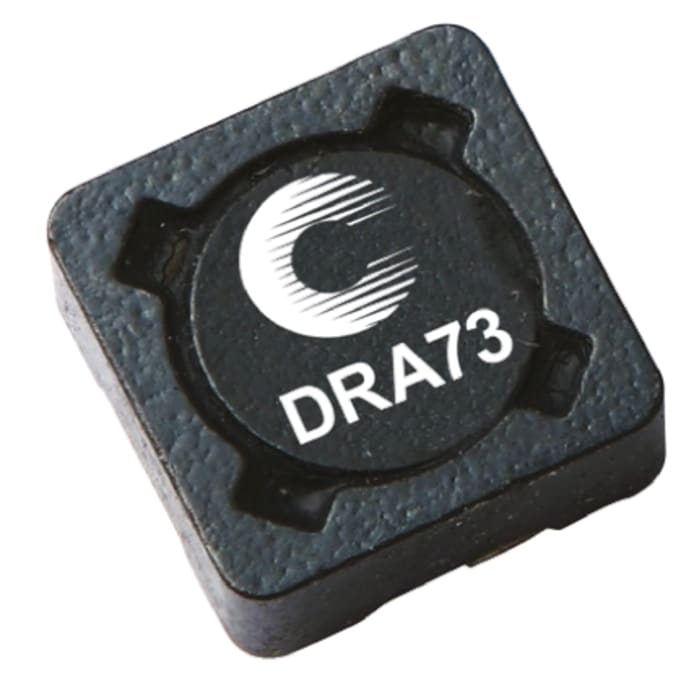

This Eaton DRA73-220-R is a wirewound surface mount inductor from the DRA series, designed for high power density and efficiency in automotive applications. It features a ferrite core and magnetic shielding, making it suitable for high shock and vibration environments.
The inductor has an inductance value of 22 µH with a tolerance of ±20% and can handle a maximum DC current of 1.64A. Its maximum DC resistance is 141 mΩ. The operating temperature range is from -40°C to 165°C.
Constructed for reliability, this component is AEC-Q200 qualified and meets RoHS3 compliance standards. The package size is 0703, and it is designed for surface mounting. Applications include automotive electronics, telematics, and DC-DC converters.
Key specifications include a 22 µH inductance, 1.64A maximum DC current, and a maximum operating temperature of 165°C. The inductor construction is wirewound with a ferrite core.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the DRA73-220-R is 22 µH with a tolerance of ±20%.
The maximum DC current rating for the DRA73-220-R is 1.64A.
The maximum DC resistance of the DRA73-220-R is 141 mΩ.
The operating temperature range for the DRA73-220-R is from -40°C to 165°C.
Yes, the DRA73-220-R inductor is magnetically shielded.
The DRA73-220-R meets the AEC-Q200 automotive standard.
The package type for the DRA73-220-R is 0703 and it is a surface mount inductor.
