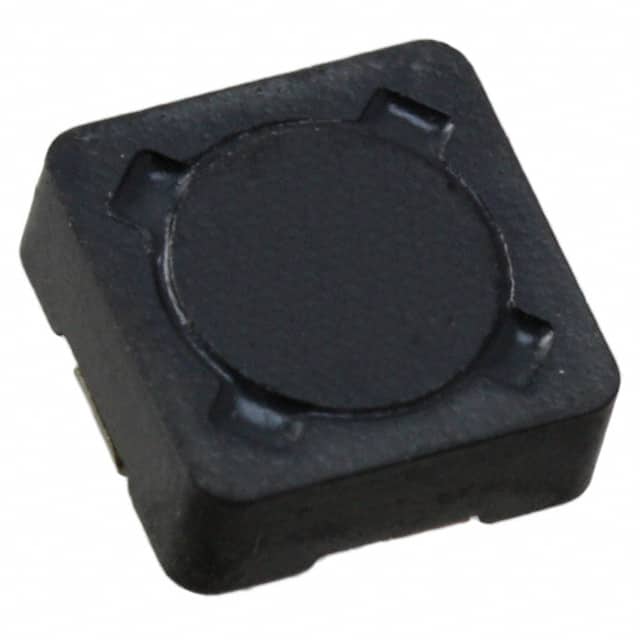

DR73-R33-R Fixed inductor, 330 nH, ±20% tolerance, shielded drum core ferrite, 6.21 A rated current, 7.3 mOhm DCR, surface mount.
Mfr Part #:

DR73-R33-R

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Fixed inductor, 330 nH, ±20% tolerance, shielded drum core ferrite, 6.21 A rated current, 7.3 mOhm DCR, surface mount.
✓ Total Stock: 10 pcs
$ Price Range: $0.28 - $0.56

DR73-R33-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DR73-R33-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

DR73-R33-R Description

Short technical summary and product information.

The DR73-R33-R is a fixed inductor from Eaton - Electronics Division, featuring a shielded drum core ferrite construction with wirewound technology. It offers an inductance of 330 nH with ±20% tolerance, a rated current of 6.21 A, and a low DC resistance of 7.3 mOhm. The shielding reduces electromagnetic interference, making it suitable for noise-sensitive applications.



This inductor is designed for surface mount assembly in a nonstandard package measuring 7.60 mm by 7.60 mm with a height of 3.55 mm. It operates over a temperature range of -40°C to 125°C, supporting use in harsh environments. The ferrite core material provides stable performance across frequency and temperature.



Typical applications include DC-DC converters, power supply filtering, and automotive electronics where compact size and high current handling are required. The component is RoHS compliant (unverified) and has an MSL of 1 (unlimited floor life).

DR73-R33-R Quick Information

Product Type: Fixed Inductor
Series: DR73
Canonical Name: Fixed Inductor 330 nH 6.21 A Shielded Drum Core Ferrite
Subcategory: Fixed Inductor

DR73-R33-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DR73-R33-R Estimated Pricing

Qty Low High
1+ $0.56 $0.56
10+ $0.46 $0.46
100+ $0.40 $0.40
1,350+ $0.31 $0.31
2,700+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

DR73-R33-R Features

  • Shielded ferrite core reduces EMI.
  • Rated current of 6.21 A.
  • Low DCR of 7.3 mOhm.
  • Surface mount package 7.6 mm square.
  • Operating temperature range -40°C to 125°C.

DR73-R33-R Applications

  • Used in DC-DC converter circuits.
  • Ideal for power supply filtering.
  • Suitable for automotive electronics.
  • Applicable in portable devices.
  • Used in EMI suppression applications.

DR73-R33-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the DR73-R33-R?

The inductance is 330 nH with a tolerance of ±20%.

What is the rated current of this inductor?

The rated current is 6.21 A.

What is the DC resistance (DCR) of the DR73-R33-R?

The DC resistance is 7.3 mOhm.

Is the DR73-R33-R shielded?

Yes, it is shielded.

What is the package size of this inductor?

The package is nonstandard, measuring 7.60 mm x 7.60 mm x 3.55 mm.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What is the saturation current of the DR73-R33-R?

The saturation current is approximately 14.4 A (inferred, not confirmed).
