| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,350 pcs
|
1350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
278 pcs
|
278 pcs | On Request | 1 | On Request | On Request | 26CD13 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

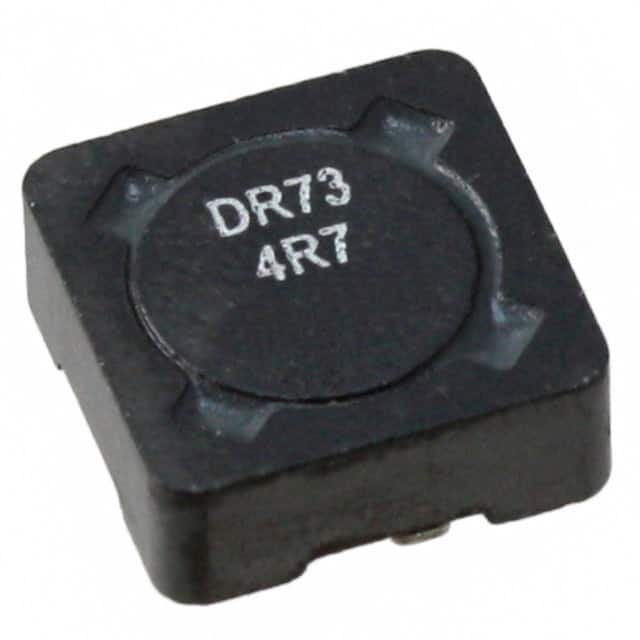

The Eaton DR73-4R7-R is a shielded wirewound drum core fixed inductor designed for surface mount assembly. It delivers an inductance of 4.7 µH with a tolerance of ±20%, and a rated current of 3.09 A. The DC resistance is 29.7 mOhm, and the saturation current is 3.78 A.
The ferrite core construction and shielding provide effective electromagnetic interference (EMI) suppression. The part is housed in a nonstandard package measuring 7.60 mm by 7.60 mm with a height of 3.55 mm.
Operating temperature range spans -40°C to 125°C, making it suitable for a wide range of environments. The DR73 series from Eaton is commonly used in power conversion and filtering circuits where moderate inductance and current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.60 | $0.60 |
| 10+ | $0.49 | $0.49 |
| 100+ | $0.41 | $0.41 |
| 1,350+ | $0.33 | $0.33 |
| 2,700+ | $0.30 | $0.30 |
| 4,050+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH with a tolerance of ±20%.
The rated current is 3.09 A.
The DC resistance is 29.7 mOhm.
Yes, the inductor is shielded.
The package measures 7.60 mm by 7.60 mm with a height of 3.55 mm and is a nonstandard surface mount case.
The inductor operates from -40°C to 125°C.
The saturation current is 3.78 A.
