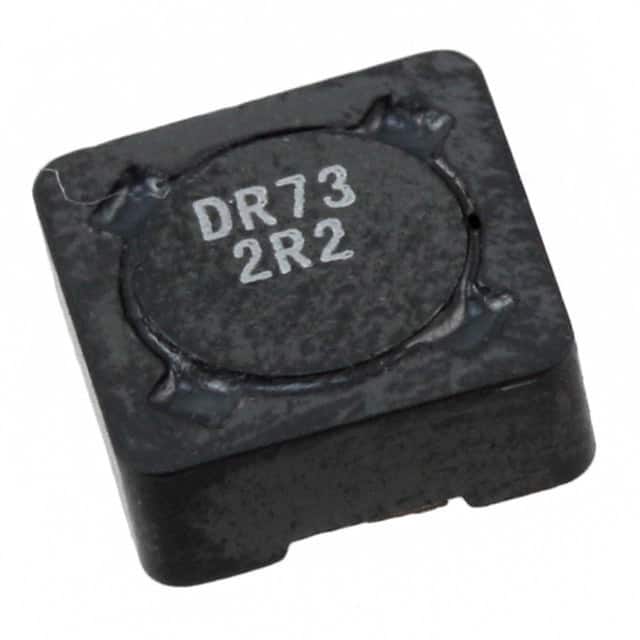

DR73-2R2-R Fixed inductor, 2.2 µH, ±20% tolerance, shielded drum core wirewound ferrite construction, rated for 4.15 A with 16.5 mOhm DCR.
Mfr Part #:

DR73-2R2-R

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Fixed inductor, 2.2 µH, ±20% tolerance, shielded drum core wirewound ferrite construction, rated for 4.15 A with 16.5 mOhm DCR.
✓ Total Stock: 5,400 pcs
$ Price Range: $0.27 - $0.54

DR73-2R2-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,400 pcs
On Request
5400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DR73-2R2-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

DR73-2R2-R Description

Short technical summary and product information.

The DR73-2R2-R is a shielded drum core wirewound inductor from Eaton - Electronics Division. It offers a nominal inductance of 2.2 µH with a tolerance of ±20%. This inductor is rated for a continuous current of 4.15 A and features a low DC resistance of 16.5 mOhm, contributing to reduced power losses in power supply and filtering applications.



Constructed with a ferrite core and fully shielded design, the DR73-2R2-R minimizes electromagnetic interference and is suitable for dense PCB layouts. It has a saturation current rating of 5.52 A, providing headroom for transient current spikes. The component is surface mountable with a compact 7.60 mm x 7.60 mm footprint and a low profile height of 3.55 mm.



The operating temperature range spans -40°C to +125°C, allowing use in industrial and automotive environments. The package case is nonstandard, and the inductor is designed for reflow soldering processes. These characteristics make it a reliable choice for DC-DC converters, power management circuits, and energy storage applications.

DR73-2R2-R Quick Information

Product Type: Fixed Inductor
Series: DR73
Canonical Name: DR73-2R2-R Shielded Drum Core Wirewound Inductor
Subcategory: Shielded Drum Core Inductor

DR73-2R2-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DR73-2R2-R Estimated Pricing

Qty Low High
1+ $0.54 $0.54
10+ $0.44 $0.44
100+ $0.37 $0.37
1,350+ $0.30 $0.30
2,700+ $0.27 $0.27
4,050+ $0.27 $0.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

DR73-2R2-R Features

  • Shielded ferrite drum core construction.
  • Rated for 4.15 A continuous current.
  • Low 16.5 mOhm DC resistance.
  • Operates from -40°C to +125°C.
  • Compact 7.60 mm surface mount package.

DR73-2R2-R Applications

  • Used in DC-DC converter output filtering.
  • Ideal for power supply choke applications.
  • Suited for automotive and industrial electronics.
  • Works in low-profile surface mount designs.

DR73-2R2-R FAQs

4 frequently asked questions generated from this part’s specifications.
What is the inductance of the DR73-2R2-R?

The DR73-2R2-R has a nominal inductance of 2.2 µH with a tolerance of ±20%.

What is the current rating of this inductor?

The continuous current rating is 4.15 A, and the saturation current is 5.52 A.

What is the DC resistance of the DR73-2R2-R?

The DC resistance is 16.5 mOhm (typical).

Is the DR73-2R2-R shielded?

Yes, it is a shielded inductor, which helps reduce electromagnetic interference.
