| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,050 pcs
|
4050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

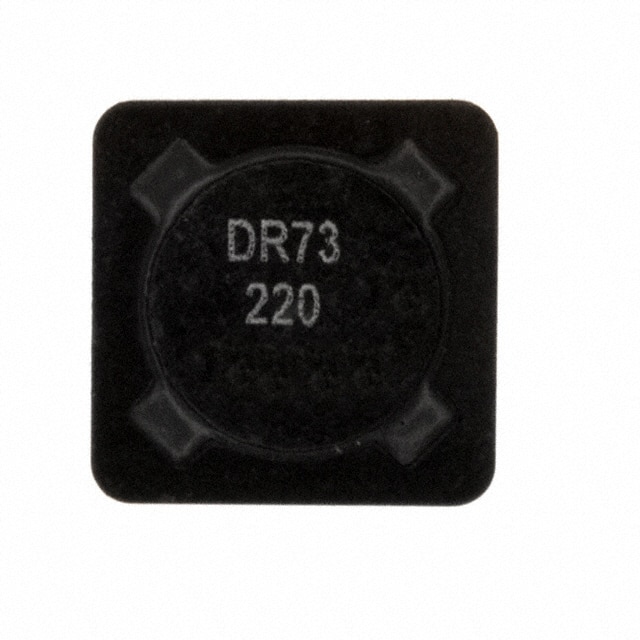

The DR73-220-R is a shielded drum core wirewound fixed inductor manufactured by Eaton - Electronics Division. It offers 22 µH inductance with ±20% tolerance and is rated for 1.62 A continuous current, with a saturation current of 1.67 A. The component has a DC resistance of 107 mΩ and operates over -40°C to 125°C.
The inductor uses a ferrite drum core with wirewound construction and is fully shielded to contain magnetic flux. It is supplied in a nonstandard surface-mount package measuring 7.60 mm x 7.60 mm with a 3.55 mm height, suitable for automated PCB assembly.
With its compact footprint and low profile, the DR73-220-R is suited for power conversion and filtering circuits in space-constrained designs. The shielded construction helps minimize electromagnetic interference in sensitive electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.45 | $0.45 |
| 100+ | $0.37 | $0.37 |
| 500+ | $0.36 | $0.36 |
| 1,350+ | $0.30 | $0.30 |
| 2,700+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DR73-220-R has an inductance of 22 µH with a tolerance of ±20%.
The continuous current rating is 1.62 A, and the saturation current is 1.67 A.
The DC resistance is 107 mΩ.
It is a surface-mount inductor in a nonstandard package measuring 7.60 mm x 7.60 mm with a height of 3.55 mm.
Yes, it is a shielded drum core wirewound inductor.
It operates from -40°C to 125°C.
The core material is ferrite.
