| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,550 pcs
|
17550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

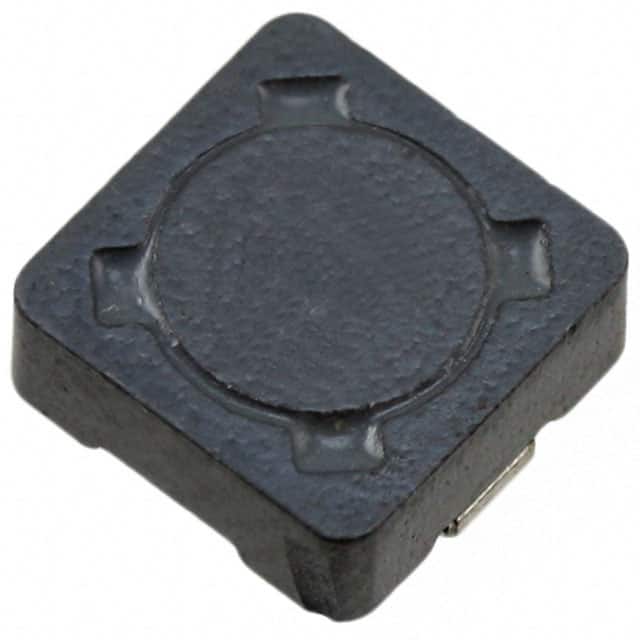

The Eaton DR73-101-R is a fixed inductor with a shielded drum core and wirewound construction, designed for surface mount applications. It offers a nominal inductance of 100 µH with a tolerance of ±20% and a rated current of 730 mA. The inductor features a saturation current of 790 mA and a low DC resistance of 527 mOhm, enabling efficient power handling in compact designs.\n\nThis inductor uses a ferrite core material and is fully shielded to minimize electromagnetic interference, making it suitable for use in noise-sensitive circuits. It is rated for continuous operation over a temperature range of -40°C to +125°C, providing reliable performance in demanding environments.\n\nPackaged in a nonstandard surface-mount case measuring 7.60 mm by 7.60 mm with a height of 3.55 mm, the DR73-101-R is suitable for space-constrained PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.70 | $0.70 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.36 | $0.36 |
| 1,350+ | $0.32 | $0.32 |
| 2,700+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 100 µH with ±20% tolerance.
The rated current is 730 mA, with a saturation current of 790 mA.
The DC resistance (DCR) is 527 mOhm.
Yes, the DR73-101-R is a shielded inductor.
The operating temperature range is -40°C to +125°C.
The package dimensions are 7.60 mm (L) x 7.60 mm (W) x 3.55 mm (H).
The core material is ferrite.
