| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

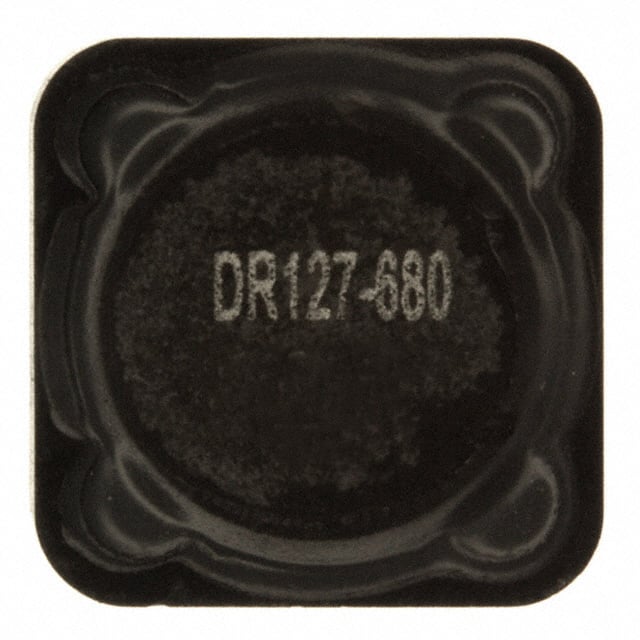

The Eaton DR127-680-R is a fixed, shielded power inductor designed for surface mount applications. It features a wirewound drum core construction with a ferrite core material, providing an inductance of 68 microhenries with a tolerance of ±20%.
Electrically, this inductor offers a rated current of 2.44 amperes and has a saturation current of 4.44 amperes. Its DC resistance is specified at 105 milliohms, making it suitable for power conversion circuits where low losses are important. The component operates within a temperature range of -40°C to 125°C.
The DR127-680-R comes in a nonstandard 12.50 mm x 12.50 mm surface mount package with a height of 8.00 mm. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.74 | $0.74 |
| 100+ | $0.61 | $0.61 |
| 350+ | $0.55 | $0.55 |
| 700+ | $0.52 | $0.52 |
| 1,050+ | $0.47 | $0.47 |
| 2,450+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 68 µH with a tolerance of ±20%.
The rated continuous current is 2.44 A, with a saturation current of 4.44 A.
The DC resistance is 105 mΩ (nominal).
The package / case is Nonstandard (12.50 mm x 12.50 mm x 8.00 mm) and it is designed for surface mount mounting.
Yes, this inductor is shielded.
It operates from -40°C to 125°C.
