| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
324 pcs
|
324 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | 1706 | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

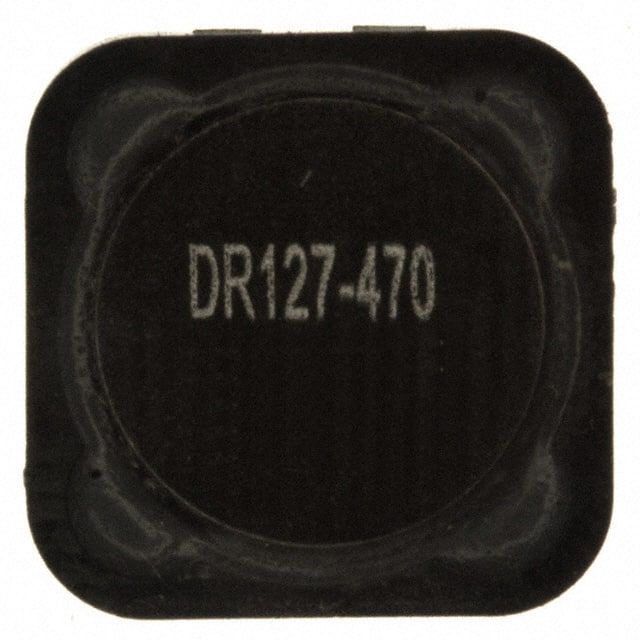

The DR127-470-R is a fixed inductor from Eaton - Electronics Division, part of the DR127 series. It features a ferrite drum core with wirewound construction and is fully shielded for reduced electromagnetic interference.
Key electrical specifications include a nominal inductance of 47µH with ±20% tolerance, a maximum current rating of 2.95A, and a saturation current of 5.28A. The maximum DC resistance is 71.9mΩ, ensuring efficient power handling.
This component is designed for surface mount assembly and comes in a nonstandard package measuring 12.50mm by 12.50mm with an 8.00mm height. It operates over a temperature range of -40°C to 125°C, making it suitable for a variety of industrial and automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 350+ | $0.56 | $0.56 |
| 700+ | $0.54 | $0.54 |
| 1,050+ | $0.50 | $0.50 |
| 2,450+ | $0.48 | $0.48 |
| 4,900+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 47µH with a tolerance of ±20%.
The maximum continuous current rating is 2.95A, and the saturation current is 5.28A.
The maximum DC resistance is 71.9mΩ.
The surface mount package measures 12.50mm in length and width, with a height of 8.00mm.
Yes, the inductor is shielded.
The operating temperature range is -40°C to 125°C.
