| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

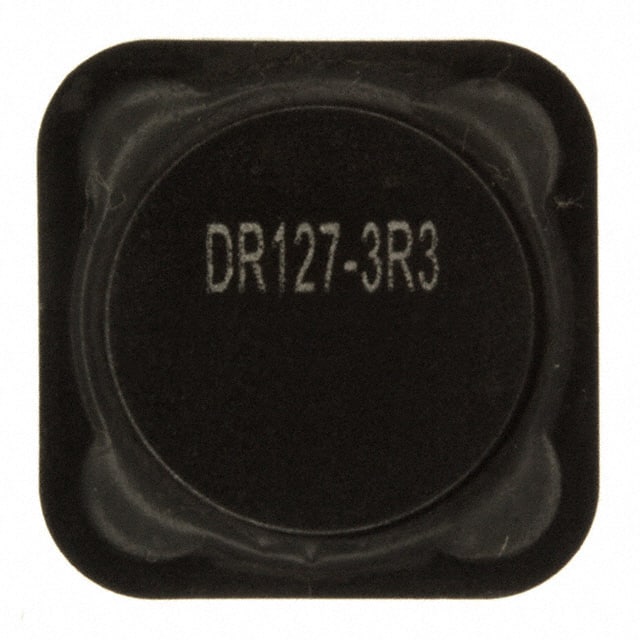

The Eaton DR127-3R3-R is a shielded drum core wirewound fixed inductor designed for high current power applications. With an inductance of 3.3 µH and a saturation current of 21.5 A, this inductor can handle significant current with a low DC resistance of 5.67 mOhm, minimizing power loss.
It features a ferrite core and is fully shielded for reduced electromagnetic interference. The component is surface mountable in a nonstandard 12.50mm x 12.50mm package with 8.00mm height. Operating temperature range is -40°C to 125°C, suitable for industrial and automotive environments.
Typical applications include DC-DC converters, power supplies, and filtering circuits where high current and low DCR are required. The ±20% tolerance is standard for power inductors. The part is compliant with RoHS and REACH regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 350+ | $0.52 | $0.52 |
| 700+ | $0.49 | $0.49 |
| 1,050+ | $0.44 | $0.44 |
| 2,450+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 µH.
10.5 A.
5.67 mOhm.
-40°C to 125°C.
Yes, it is shielded.
12.50mm x 12.50mm x 8.00mm, surface mount, nonstandard case.
±20%.
