| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
455 pcs
|
455 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
341 pcs
|
341 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

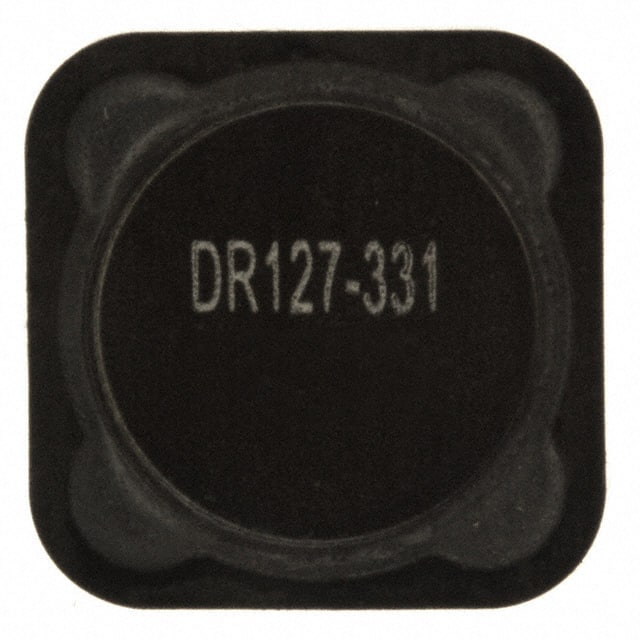

The DR127-331-R is a shielded wirewound drum core inductor manufactured by Eaton - Electronics Division. It offers an inductance of 330 µH with a tolerance of ±20%. The component is rated for a continuous current of 1.04 A and has a saturation current of 2.01 A.
The inductor features a low DC resistance of 574 mOhm, which contributes to efficient power handling. It is designed for surface mount assembly and comes in a nonstandard package measuring 12.50mm x 12.50mm with a height of 8.00mm. The core material is ferrite, providing stable inductance over a wide operating temperature range of -40°C to 125°C.
This shielded construction minimizes electromagnetic interference, making it suitable for power supply and DC-DC converter applications where noise reduction is critical. The wirewound construction ensures high current handling and low core losses.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.61 | $0.61 |
| 350+ | $0.55 | $0.55 |
| 700+ | $0.52 | $0.52 |
| 1,050+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
330 µH with ±20% tolerance.
1.04 A continuous, with a saturation current of 2.01 A.
574 mOhm.
12.50mm x 12.50mm x 8.00mm, nonstandard SMD package.
Yes, it is shielded.
-40°C to 125°C.
Ferrite.
