| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,011 pcs
|
1011 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
296 pcs
|
296 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

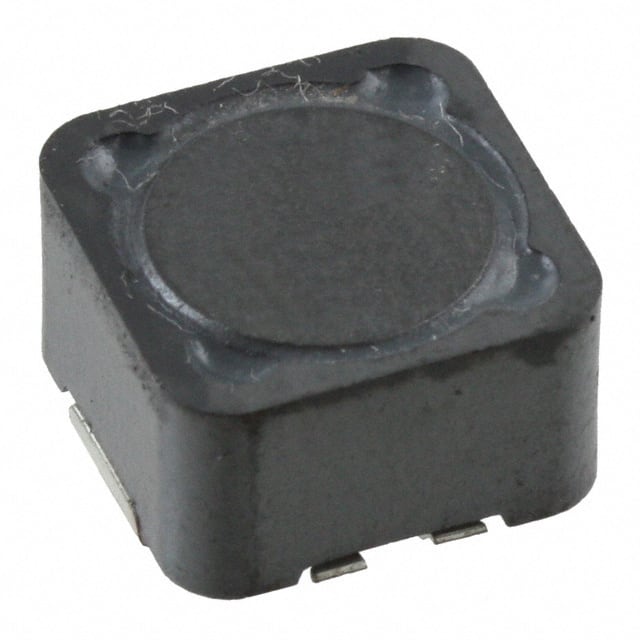

The Eaton DR127-330-R is a shielded ferrite core power inductor designed for surface mount applications. It offers an inductance of 33 µH with a tolerance of ±20% and a saturation current rating of 6.22 A. The DC resistance is 60 mΩ typical, supporting a continuous current of 3.23 A. The component is housed in a nonstandard 12.50 mm x 12.50 mm x 8.00 mm package, making it suitable for space-constrained power supply designs. The operating temperature range of -40°C to 125°C allows use in demanding environments. The shielded construction minimizes electromagnetic interference, making it ideal for DC-DC converters and power management circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.66 | $0.66 |
| 350+ | $0.66 | $0.66 |
| 700+ | $0.62 | $0.62 |
| 1,050+ | $0.56 | $0.56 |
| 2,450+ | $0.54 | $0.54 |
| 4,900+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 µH with ±20% tolerance.
3.23 A continuous, with a saturation current of 6.22 A.
60 mΩ typical.
Yes, it is a shielded inductor.
-40°C to 125°C.
12.50 mm x 12.50 mm x 8.00 mm, nonstandard surface mount.
