| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 12:15:07 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

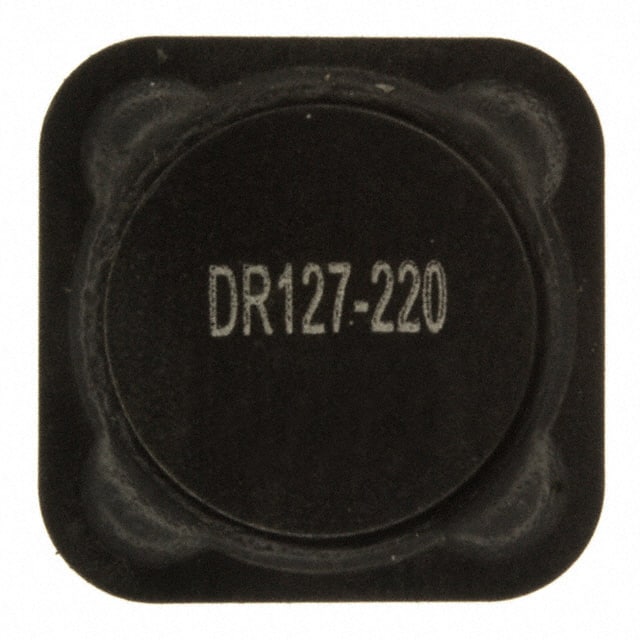

The DR127-220-R is a shielded power inductor from Eaton. It offers 22 µH inductance with ±20% tolerance. The device is rated for a continuous current of 4 A, with a saturation current of 7.57 A. Its DC resistance is 39.1 mOhm. The inductor is constructed using a ferrite core wirewound design, providing efficient energy storage and low losses. The shielding reduces electromagnetic interference. Operating temperature range is -40°C to 125°C. The component is surface mounted in a nonstandard package measuring 12.5 mm x 12.5 mm x 8.0 mm. Typical applications include DC-DC converters, voltage regulator modules, and power supply filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 350+ | $0.52 | $0.52 |
| 700+ | $0.49 | $0.49 |
| 1,050+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH with a tolerance of ±20%.
The rated current is 4 A, with a saturation current of 7.57 A.
The DC resistance (DCR) is 39.1 mOhm.
The package is nonstandard SMD measuring 12.5 mm x 12.5 mm x 8.0 mm.
The operating temperature range is -40°C to 125°C.
Yes, it is a shielded inductor.
The inductance tolerance is ±20%.
