| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | 1107 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

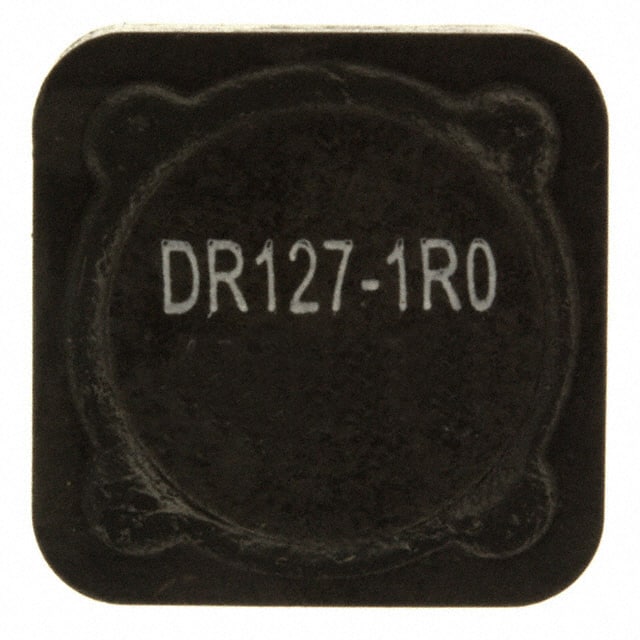

The DR127-1R0-R is a fixed inductor from Eaton - Electronics Division, featuring a shielded wirewound drum core construction with a ferrite core. It provides an inductance of 1µH with ±20% tolerance, a continuous current rating of 15.5A, and a saturation current of 40A. The DC resistance is a low 3.13mΩ, making it suitable for high-efficiency power applications.
This inductor is designed for surface mount assembly in a nonstandard package measuring 12.50mm x 12.50mm with a seated height of 8.00mm. It operates over a temperature range of -40°C to 125°C, supporting use in demanding environments. The component is RoHS3 compliant, MSL 1 (unlimited), and REACH unaffected, though these compliance claims are unverified.
Typical applications include power supply filtering, DC-DC converter output stages, and energy storage circuits where high current and low resistance are critical. The shielded design helps reduce electromagnetic interference in compact layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.88 | $0.88 |
| 25+ | $0.80 | $0.80 |
| 100+ | $0.66 | $0.66 |
| 350+ | $0.66 | $0.66 |
| 700+ | $0.52 | $0.52 |
| 1,050+ | $0.47 | $0.47 |
| 2,450+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1µH with ±20% tolerance.
15.5A continuous current rating.
3.13mΩ.
12.50mm x 12.50mm with 8.00mm seated height, nonstandard SMD package.
Yes, it is shielded.
40A.
-40°C to 125°C.
