| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

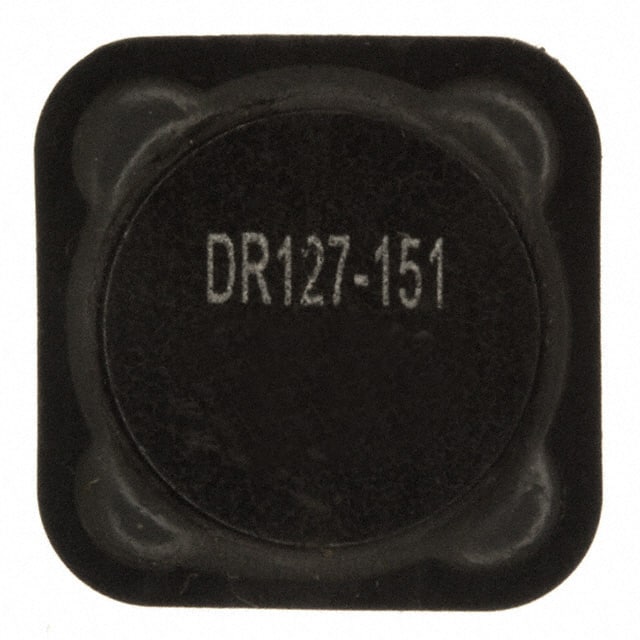

The DR127-151-R is a fixed inductor from Eaton - Electronics Division, part of the DR127 series. It offers an inductance of 150 µH with a tolerance of ±20%, a DC current rating of 1.59 A, and a saturation current of 3.01 A. The DC resistance is 247 mOhm. The inductor features a shielded ferrite core with drum core, wirewound construction, providing effective electromagnetic interference suppression. It is designed for surface mount assembly in a nonstandard package measuring 12.50 mm by 12.50 mm with a height of 8.00 mm. The operating temperature range spans -40°C to 125°C, suitable for a wide range of environments. This component is commonly used in power supply circuits, DC-DC converters, and filtering applications where stable inductance and low core losses are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 350+ | $0.52 | $0.52 |
| 700+ | $0.49 | $0.49 |
| 1,050+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 150 µH with a tolerance of ±20%.
The DC current rating is 1.59 A, and the saturation current is 3.01 A.
The DC resistance is 247 mOhm.
The inductor is surface mount in a nonstandard package measuring 12.50 mm x 12.50 mm with a height of 8.00 mm.
Yes, it is a shielded inductor with a ferrite core.
The operating temperature range is -40°C to 125°C.
