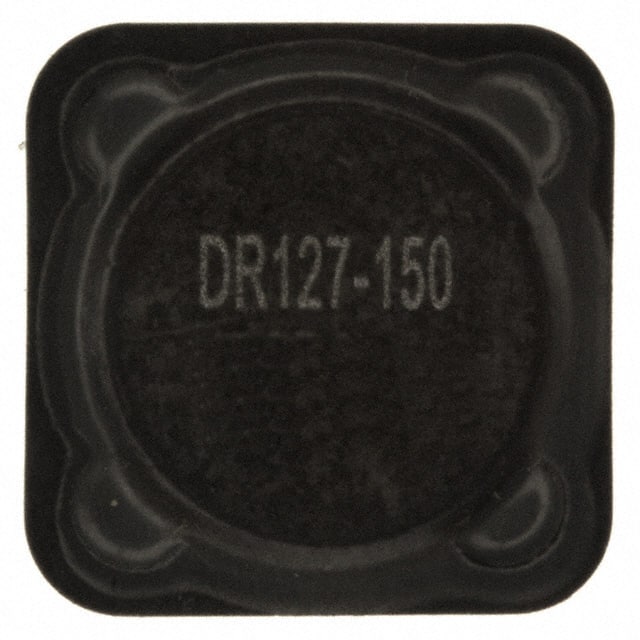

DR127-150-R Fixed inductor, 15µH, ±20%, shielded, wirewound drum core. Rated current 5.03A, DCR 24.7mOhm, surface mount.
Mfr Part #:

DR127-150-R

Available from 3 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Fixed inductor, 15µH, ±20%, shielded, wirewound drum core. Rated current 5.03A, DCR 24.7mOhm, surface mount.
✓ Total Stock: 1,120 pcs
$ Price Range: $0.54 - $0.85

DR127-150-R Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
700 pcs
On Request
700 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DR127-150-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

DR127-150-R Description

Short technical summary and product information.

The DR127-150-R from Eaton is a fixed, shielded wirewound inductor featuring a ferrite drum core. With an inductance of 15 µH and a tolerance of ±20%, it is designed for power applications requiring high current handling. It has a rated current of 5.03 A and a saturation current of 9.66 A, with a low DC resistance of 24.7 mΩ. The component operates over a temperature range of -40°C to 125°C. It comes in a surface-mount, nonstandard package measuring 12.5 mm × 12.5 mm × 8.0 mm. This inductor is suitable for use in DC-DC converters, power supplies, and other power management circuits where a shielded design is required to minimize electromagnetic interference.

DR127-150-R Quick Information

Product Type: Fixed Inductor
Series: DR127
Canonical Name: Eaton DR127-150-R Fixed Inductor
Subcategory: Shielded Wirewound Inductor

DR127-150-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DR127-150-R Estimated Pricing

Qty Low High
1+ $0.85 $0.85
10+ $0.70 $0.70
100+ $0.58 $0.58
350+ $0.58 $0.58
700+ $0.58 $0.58
1,050+ $0.56 $0.56
2,450+ $0.54 $0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

DR127-150-R Features

  • Shielded ferrite drum core construction.
  • Rated current up to 5.03 amps.
  • Low DC resistance of 24.7 milliohms.
  • Operating temperature range -40 to 125°C.
  • Surface mount package 12.5 mm square.

DR127-150-R Applications

  • Ideal for DC-DC converter circuits.
  • Used in power supply filtering.
  • Suitable for EMI-sensitive designs.
  • Perfect for high current applications.

DR127-150-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the DR127-150-R?

15 µH.

What is the rated current?

5.03 A.

What is the DC resistance?

24.7 mΩ.

What is the package type?

Surface mount, nonstandard case.

Is this inductor shielded?

Yes, it is shielded.

What is the operating temperature range?

-40°C to 125°C.

What is the inductance tolerance?

±20%.
