| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

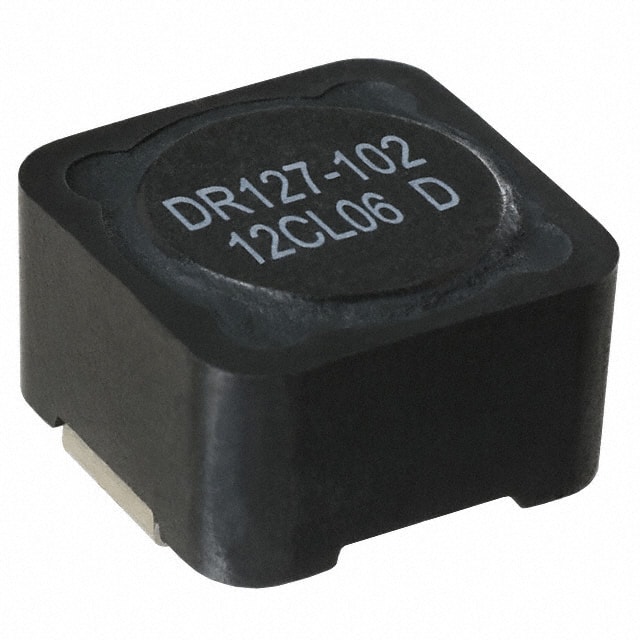

The DR127-102-R is a fixed inductor from Eaton's DR127 series. It features a ferrite core with drum core and wirewound construction, providing 1 mH inductance with ±20% tolerance. The component is shielded for reduced electromagnetic interference. Rated current is 610 mA with a saturation current of 1.14 A. DC resistance is 1.66 Ohm.
The inductor is designed for surface mount assembly in a nonstandard package measuring 12.50 mm x 12.50 mm x 8.00 mm. Operating temperature range is -40°C to 125°C. Suitable for power supply filtering, DC-DC converters, and other applications requiring moderate inductance in a compact shielded package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 350+ | $0.55 | $0.55 |
| 700+ | $0.52 | $0.52 |
| 1,050+ | $0.47 | $0.47 |
| 2,450+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 mH with ±20% tolerance.
610 mA rated current.
1.66 Ohm.
12.50 mm x 12.50 mm x 8.00 mm.
Yes, shielded.
-40°C to 125°C.
1.14 A.
