| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
530 pcs
|
530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

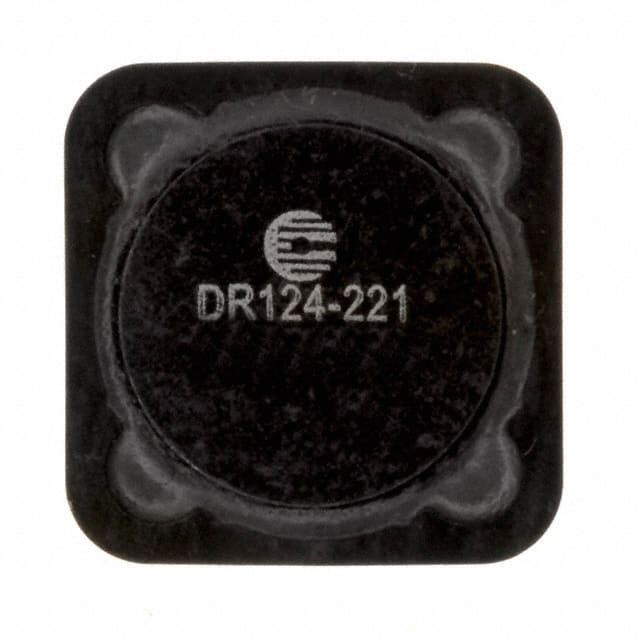

The Eaton DR124-221-R is a shielded wirewound drum core inductor with a ferrite core, offering 220 µH inductance with ±20% tolerance. It is rated for 1 A continuous current and features a maximum DC resistance of 669.6 mOhm.
The component has a saturation current of 1.15 A, slightly above the rated current, ensuring stable operation under peak conditions. It operates over a temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments.
The inductor is surface mountable in a nonstandard 12.50 mm x 12.50 mm package with a height of 4.50 mm. It is shielded to minimize electromagnetic interference in dense circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.77 | $0.77 |
| 100+ | $0.68 | $0.68 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.55 | $0.55 |
| 750+ | $0.50 | $0.50 |
| 2,250+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 µH with ±20% tolerance.
1 A continuous current, with saturation current of 1.15 A.
Maximum 669.6 mOhm.
Nonstandard surface mount package, 12.50 mm x 12.50 mm, height 4.50 mm.
Yes, it is shielded.
-40°C to 125°C.
Surface mount.
