| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

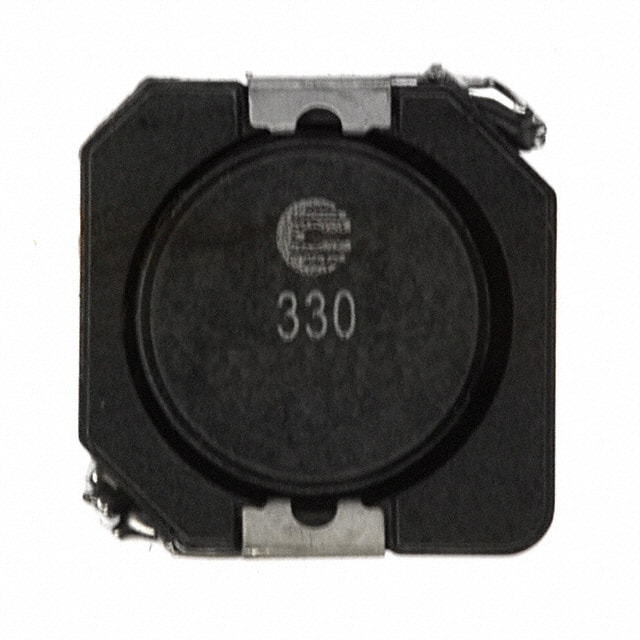

The Eaton DR1050-330-R is a shielded drum core wirewound fixed inductor. Its inductance is 33 µH with a tolerance of ±30%, and it is rated for a current of 2.56 A. The maximum DC resistance (DCR) is 71.9 mOhm. The inductor is shielded, making it suitable for applications where electromagnetic interference (EMI) reduction is important.
The component uses a ferrite core and is designed for surface mount assembly. It is housed in a nonstandard package with dimensions 10.50 mm length, 10.30 mm width, and 5.00 mm height. The operating temperature range is -40°C to 125°C, allowing use in a variety of environments.
This inductor is typically used in power supply circuits, DC-DC converters, and energy storage applications where a compact, shielded inductor with moderate current capability is required. The wirewound construction provides stable inductance over a broad frequency range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
| 10+ | $0.67 | $0.67 |
| 100+ | $0.55 | $0.55 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.44 | $0.44 |
| 2,500+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 µH.
2.56 A.
71.9 mOhm maximum.
Yes, it is shielded.
-40°C to 125°C.
10.50 mm length, 10.30 mm width, 5.00 mm height.
