| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 12:15:07 |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

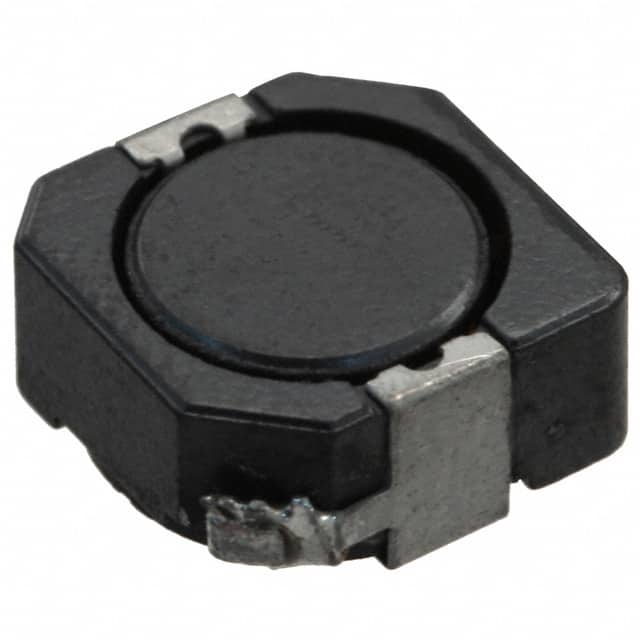

The Eaton DR1050-2R2-R is a fixed inductor from the DR1050 series. It features a shielded drum core, wirewound construction with ferrite core material. The inductor offers an inductance of 2.2 µH with ±30% tolerance, a DC resistance of 6.8 mOhm max, and a saturation current of 9.25 A. With a current rating of 7.52 A, it is suitable for power applications. The component is surface mountable in a nonstandard package measuring 10.50 mm x 10.30 mm x 5.00 mm. Operating temperature range is -40°C to 125°C. It is RoHS and REACH compliant with MSL 1 unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.68 | $0.68 |
| 100+ | $0.56 | $0.56 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.45 | $0.45 |
| 2,500+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µH.
7.52 A.
6.8 mOhm max.
Nonstandard, surface mount.
Yes, shielded.
-40°C to 125°C.
±30%.
